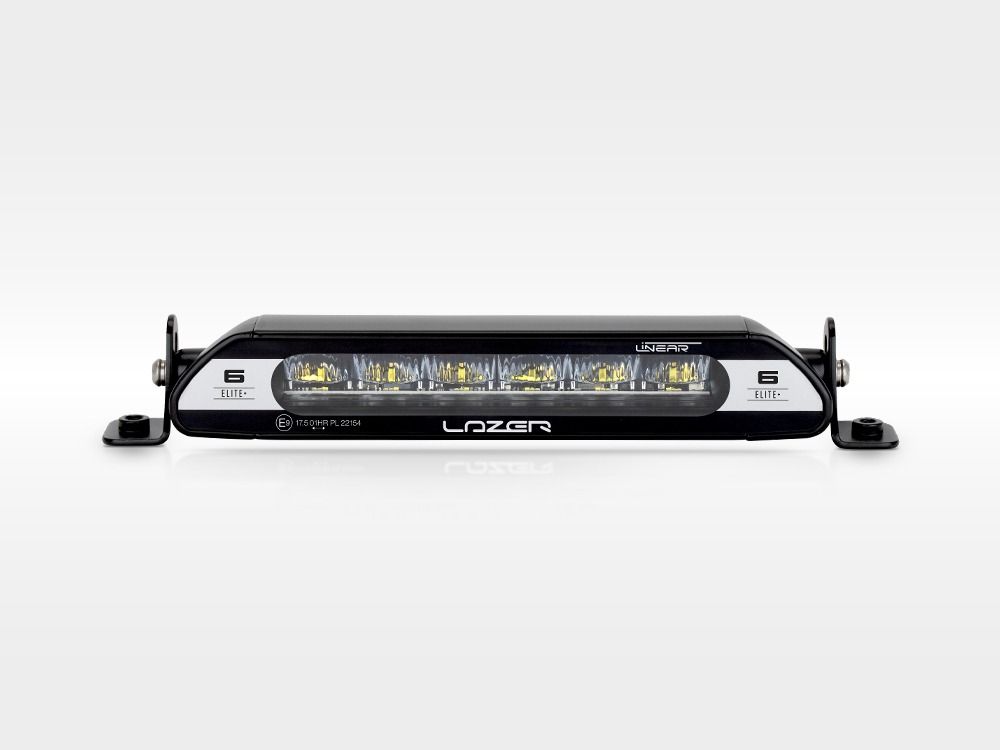

Linear-6 Elite+

Product Code
#0L06-PLUS-LNR

From AU$490.00

To AU$583.00

Linear-6 Elite+   + AU$490.00
Linear-6 Elite+

In stock

AU$490.00

Find a
Stockist

Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.

The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and Low Ouput Mode (white only). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the Low Output mode.

Despite the low-profile aero design of the Linear-6 Elite+, through advanced electronic design the light consists of an impressive 12 white LEDs and 6 yellow LEDs. With the light operating in Boost mode the white LEDs produce 5,100 raw lumen (25% more than the current Linear-6 Elite). Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 7,100 raw lumen representing incredible lighting performance for an LED light bar of its size. All LEDs operating in combination results in 69W power consumption and 5.1Amps current draw (at 14V). Comprising three core cable from each lamp, the Linear-6 Elite+ is compatible with our one-lamp and two-lamp 3-pin superseal vehicle wiring kits.

Like all Lazer products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in AUD:

Paypal / Visa / Mastercard / Secure payment / 30 day money-back guarantee

DELIVERY – AUS/NZ CUSTOMERS

Fedex Express

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). Shipping costs will be calculated at the checkout. For more information visit our Delivery Information page.

DELIVERY – INTERNATIONAL

Global delivery symbol

For International orders and deliveries, please use or global website - www.lazerlamps.com

Linear-6 Elite+

Combination of highly efficient white (5000k) and PC-yellow LEDs.

Yellow LEDs optimised for use in snow / fog / dust conditions.

Compatible One-Lamp / Two-Lamp Wiring Kits available.

Momentary switch facilitates switching lighting modes.

Memory function recalls preferred lighting mode without needing to re-select each journey.

Sleek, low profile design facilitates installation

Flexible mounting options – anti-theft mounting brackets included

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management system optimises light output to preserve longevity of the LEDs .

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight

5-year warranty

Designed & manufactured in the UK

Technical Specifications

Based on: 1x Linear-6 Elite+ LED Lamp.

  White LED's
(E-Boost /
Low Output
Mode)
Yellow LED's
(Fog / Dust / Snow Mode)
White & Yellow LED's
(Combo Mode)
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 495 gr 495 gr 495 gr
HIGH BEAM FUNCTION
Total Luminous Flux 5100 / 2500 Lm 2,000 Lm 7,100 Lm
Total Driver 'FOV' Flux † 3645 / 1822 Lm 1,200 Lm 4,774 Lm
Colour Temperature 5000K PC Yellow N/A
Number of High Output LEDs 12 6 12 White / 6 Yellow
Power Consumption 48 W / 24 W 21 W 69 W
Current Draw 3.6 A / 1.8 A 1.5 A 5.1 A
Peak Current Draw 4.9 A / 2.5 A 2 A 6.9 A
DIMENSIONS
Width 232 mm 232 mm 232 mm
Depth 62 mm 62 mm 62 mm
Height 40 mm 40 mm 40 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 84o 84o 84o
0.25 lx Line 600m / 424m 263m 621m
0.5 lx Line 424m /300m 186m 439m
1 lx Line 300m / 212m 131m 311m
3 lx Line 173m / 122m 76m 179m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 Linear-6 Elite+ LED Lamp
  • x1 Anti-Theft Side Mount (1127k)
  • x1 Installation Instructions
