Ford Transit (2019+) Grille Kit

Be the first to review this product

Product Code

GK-FT-02K/GK-FT-ELITE-02K

From A$990.00

To A$1,195.00

1. Lighting Options (wiring included) *

Qty

Ford Transit (2019+) Grille Kit

In stock

Qty

Find a Stockist

A$990.00

PAYMENT & DELIVERY

Orders will be shipped within 1 working day (stock permitting). Shipping costs will be calculated at the checkout, for more information please click here. For International orders and deliveries, please use or global website - www.lazerlamps.com.

Product description

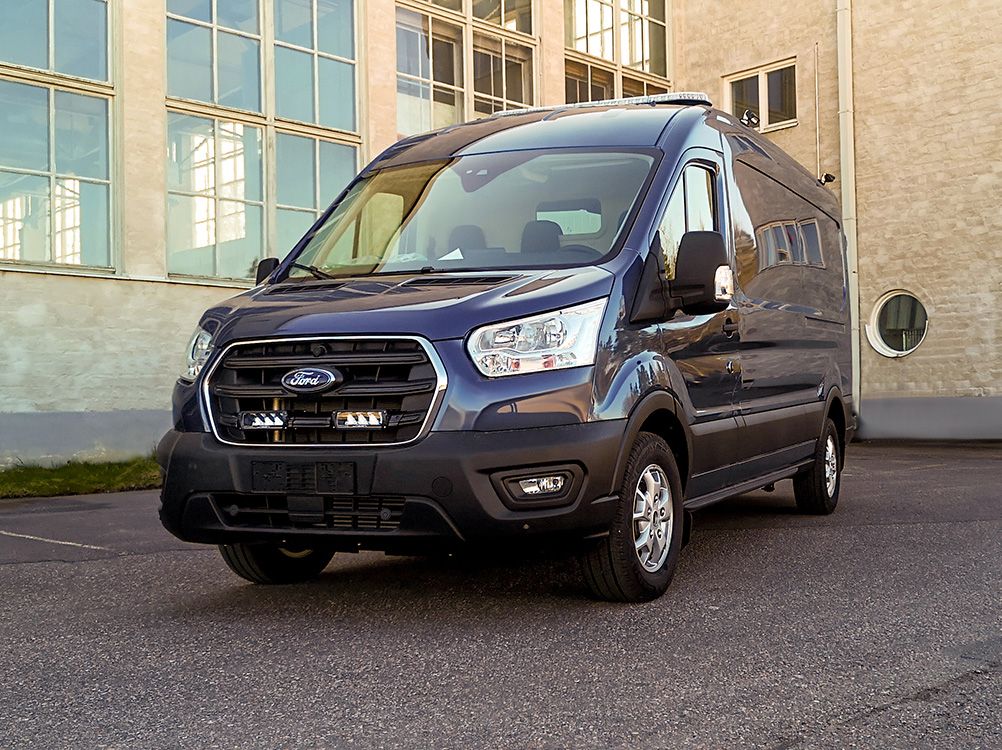

Upgrade the look and performance of your Ford Transit (2019+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

Each kit includes a pair of Triple-R 750 High Performance LED driving lights, available in two variants to suit different driving needs. The Standard is a versatile all-rounder, offering a well-balanced beam pattern with excellent distance and spread, plus integrated Position Light function. For maximum performance, the Elite delivers superior optics and extended range for serious night-time driving.

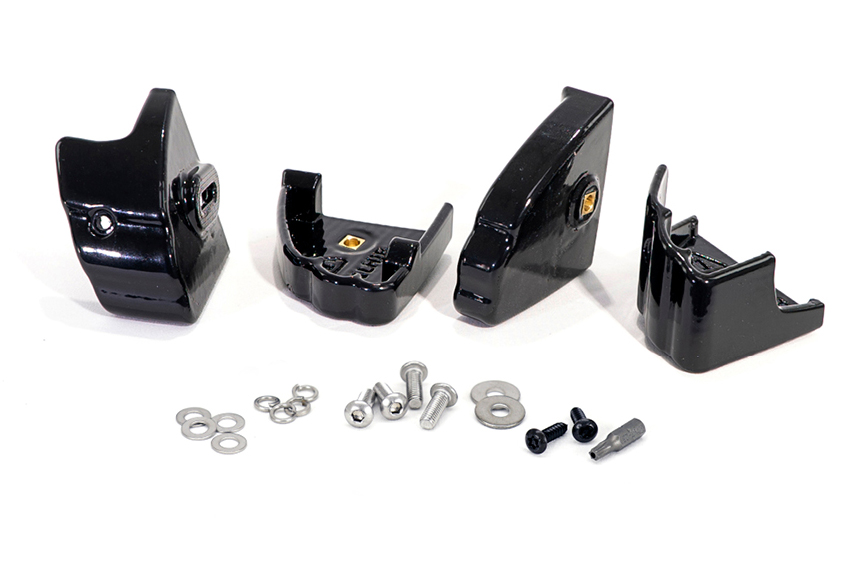

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.

Please note: The Ford Transit (2019+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Product Features

Bespoke vehicle integration kit for Lazer LED light installation

Custom fit for Ford Transit (2019-2023)

Designed for use with Triple-R 750 High Performance LED lights

Added option for white or amber backlight function (Standard model only - white only approved for on-road use)

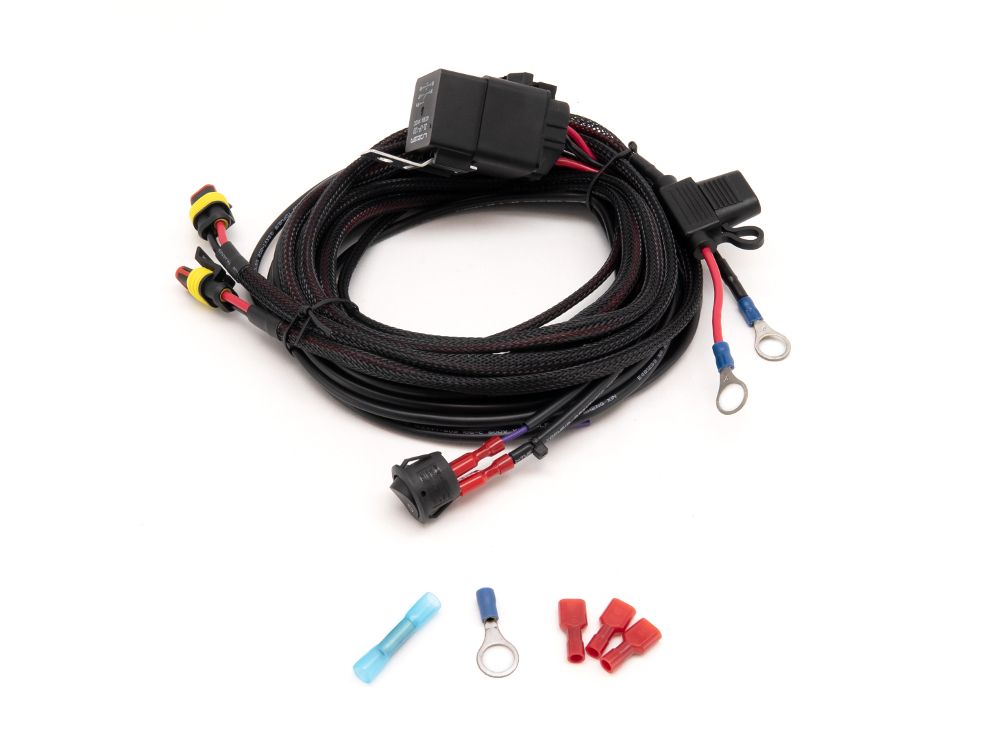

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications

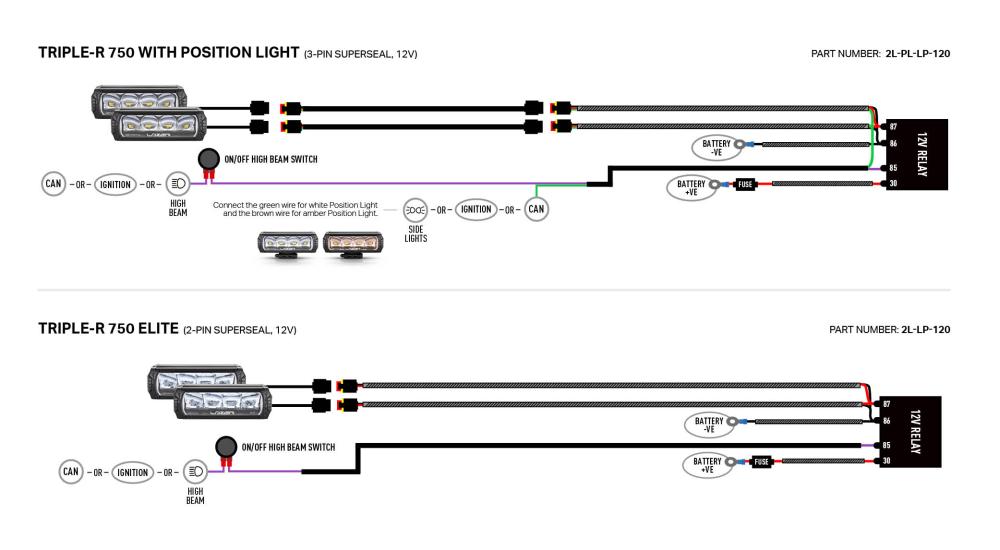

Triple-R 750 Triple-R 750 Elite Wiring Diagrams

	2x TRIPLE-R 750
Voltage Range (DC)	10-32V
LED Life	50,000 hrs
Weight	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9,240 Lm
Total Driver 'FOV' Flux †	5,572 Lm
Colour Temperature	5000K
Power Consumption	88 Watts
Current Draw (14.4V)	6.2 Amps
CERTIFICATION
IP Rating #	IP68
High Beam (E9 approval)	ECE R112 (Ref: 35 - per lamp) - EU road standards
Position Light (white)	ECE R7
EMC Certification	ECE R10
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle	19° / 18°
0.25 lux	1225m
0.5 lux	866m
1 lux	612m
3 lux	354m
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here. # - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Triple-R 750 photometric & Beam distribution

	2x TRIPLE-R 750 ELITE
Voltage Range (DC)	10-32V
LED Life	50,000 hrs
Weight	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	10,136 Lm
Total Driver 'FOV' Flux †	6,680 Lm
Colour Temperature	5000K
Power Consumption	104 Watts
Current Draw (14.4V)	7.2 Amps
CERTIFICATION
IP Rating #	IP68
High Beam (E9 approval)	ECE R112 - Ref: 12.5 - per lamp (in Low Output Mode only) - EU road standards
EMC Certification	ECE R10
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle	42° / 13°
0.25 lux	1358m
0.5 lux	960m
1 lux	679m
3 lux	392m
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here. # - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Triple-R 750 Elite photometric & Beam distribution

Whats included

1x Grille Mounting Kit (Includes cutting guides) 2x LED Lights (Triple-R 750) 1x Two-Lamp Wiring Kit Installation Instructions

Downloads

Downloads
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW) Triple-R 750 Elite - Product Information Sheet(1.92 MB) Triple-R 750 - Product Information Sheet(1.95 MB) Ford Transit (2019+) - Grille Kit Instructions(4.99 MB)
