Glide Elite

Rating:
100%
Product Code
#0G18-EL-SM

From A$825.00

To A$997.00

1. Lighting Options *
Glide Elite

In stock

Find a Stockist

A$825.00

PAYMENT & DELIVERY

Orders will be shipped within 1 working day (stock permitting). Shipping costs will be calculated at the checkout, for more information please click here. For International orders and deliveries, please use or global website - www.lazerlamps.com.

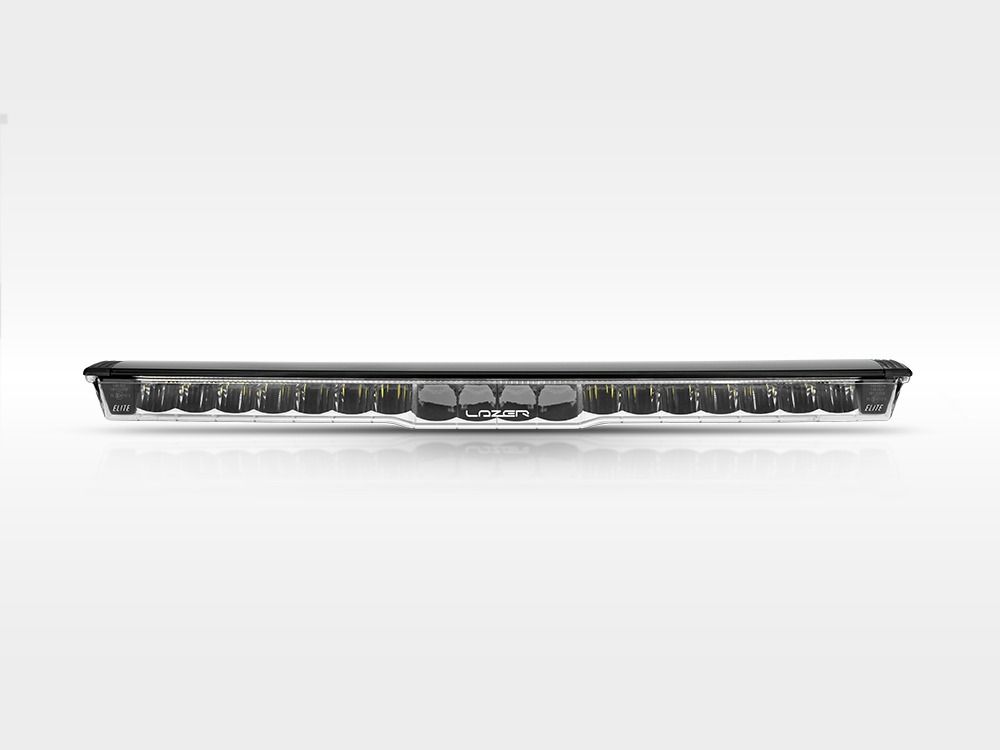

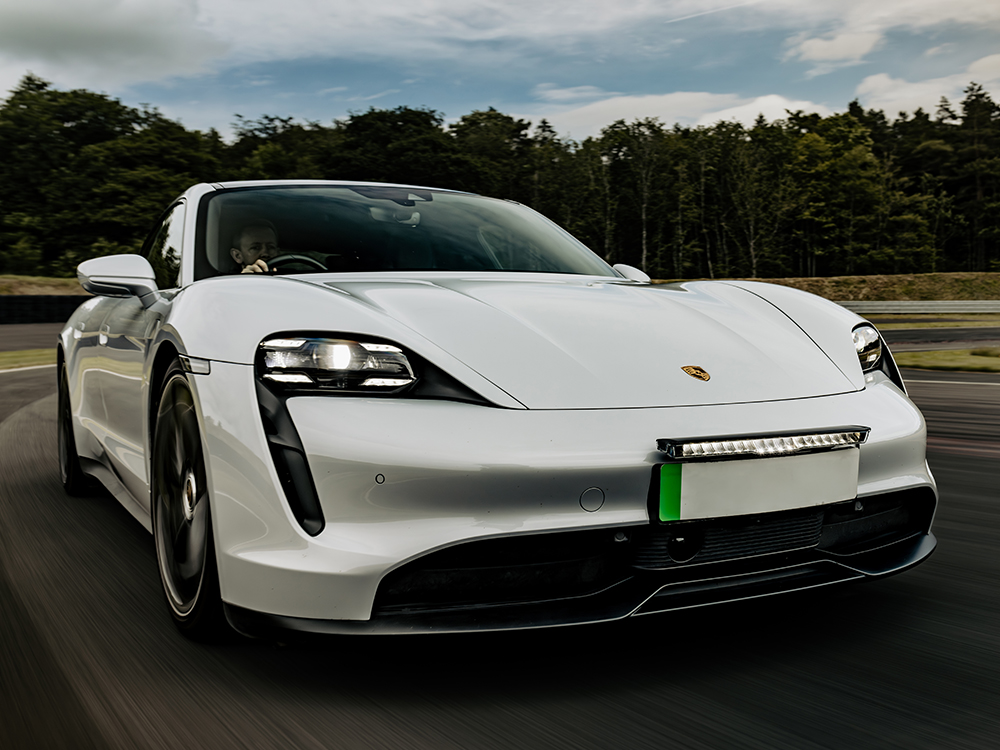

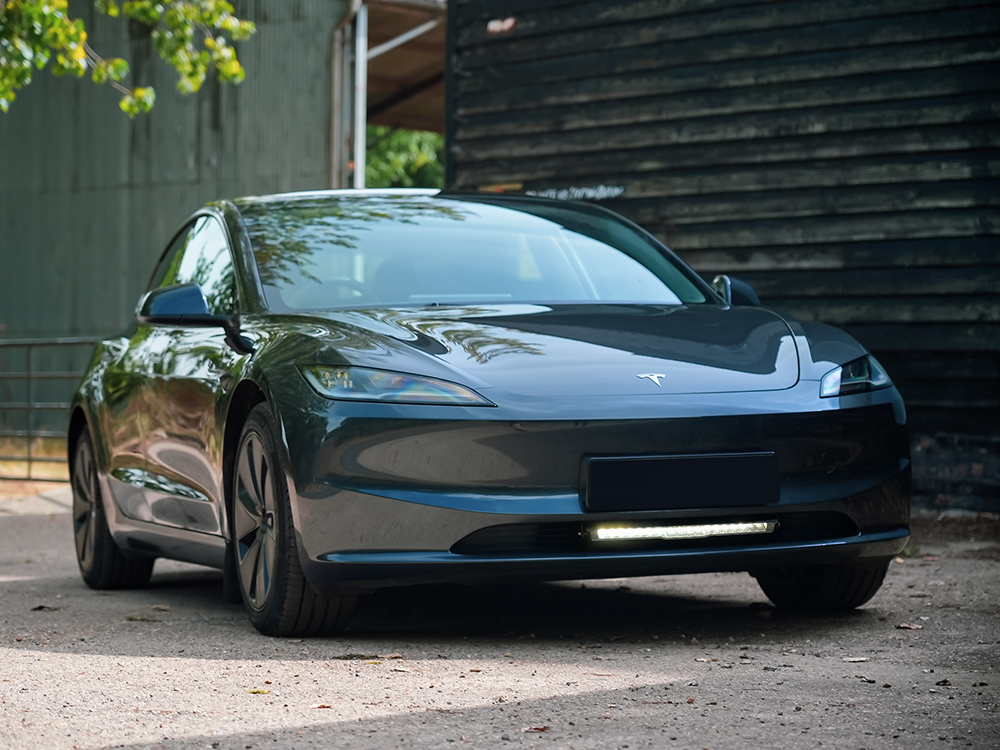

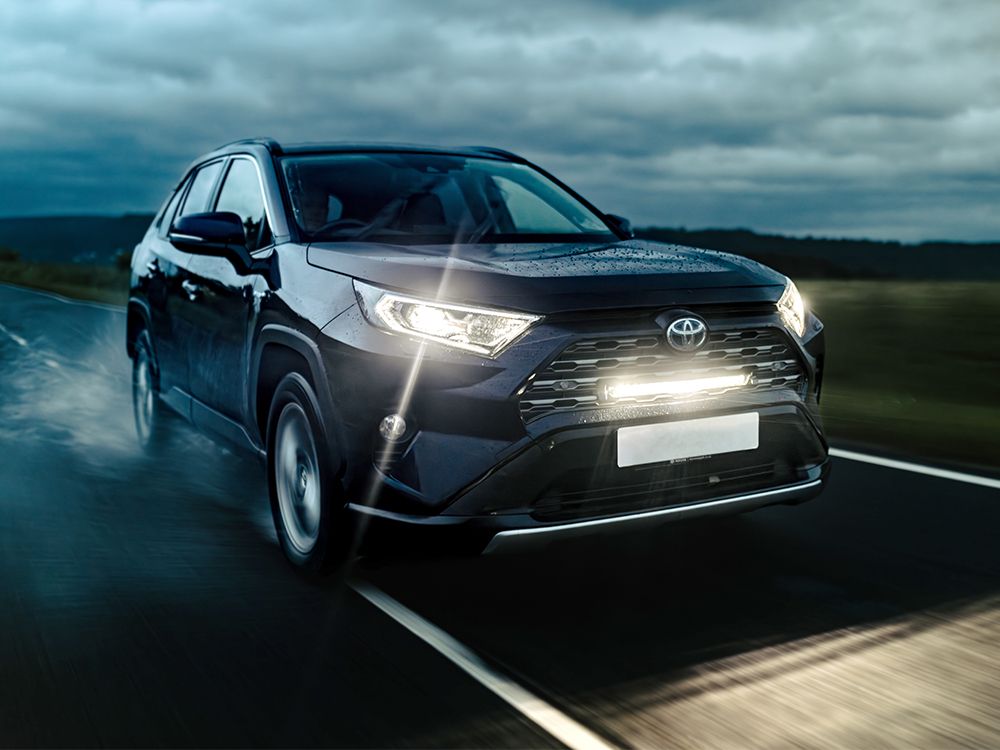

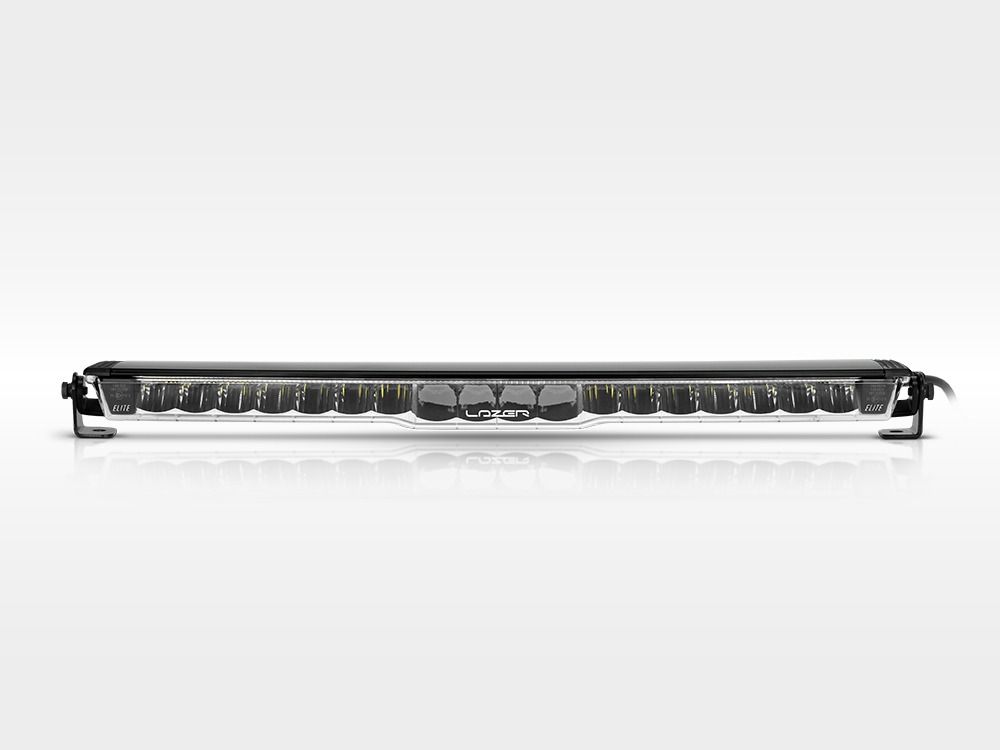

Introducing Glide, the world’s first ‘formed’ LED light bar. Featuring a monocoque lens construction for highly weight-efficient inherent strength and robustness, Glide is a range of 20” curved light bars that deliver so much especially when considering their ultra low-profile design. The enviable balance of exceptional lighting performance and OE quality aesthetics, sympathetic to the front contours of a diverse number of vehicle types, makes, and models, make Glide an exceptional choice particularly within the passenger car and light commercial sectors.

Befitting any Lazer product with the ‘Elite’ tag, considering the lamp’s size the Glide Elite delivers the very highest levels of consistent light output in a carefully engineered beam distribution derived from a combination of Spot and Wide optics and LED arrangement. Those optics, vacuum-metallised in-house by Lazer to maximise reflectivity, harness the 12,800 raw lumens to deliver 1 lux to 624m while still maintaining a 66 degree horizontal spread of light. The ‘premium bin’ LEDs utilised within the Glide Elite lamps are carefully selected for their 80CRI, with this high colour rendering index providing more definition of colours and shapes for a clearer, safer night-driving experience.

In-built within each Glide lamp is a Dynamic Dip mode which provides a smooth transition between high and low output modes. The low output mode permits driving in compliance with UNECE Regulation 149 (Double E-Mark) where local laws require, and/or a reduced output which for example reduces glare from highly reflective surfaces such as large road signs. The Dynamic Dip function is activated after the light has been on for >2seconds by simply and quickly flashing the light off and on again.

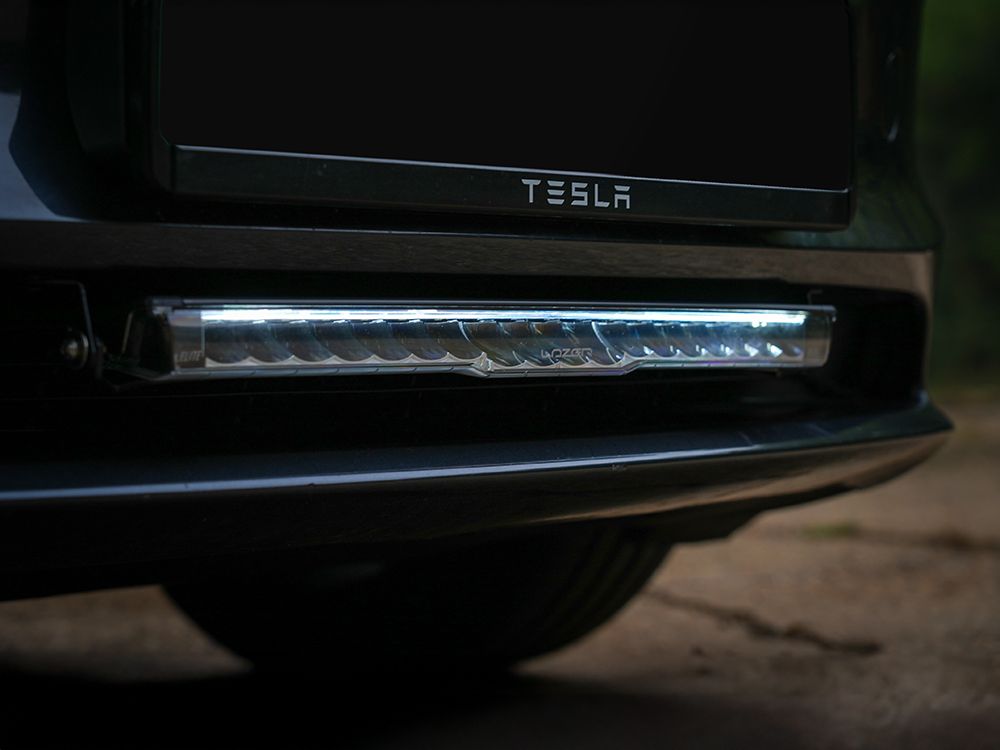

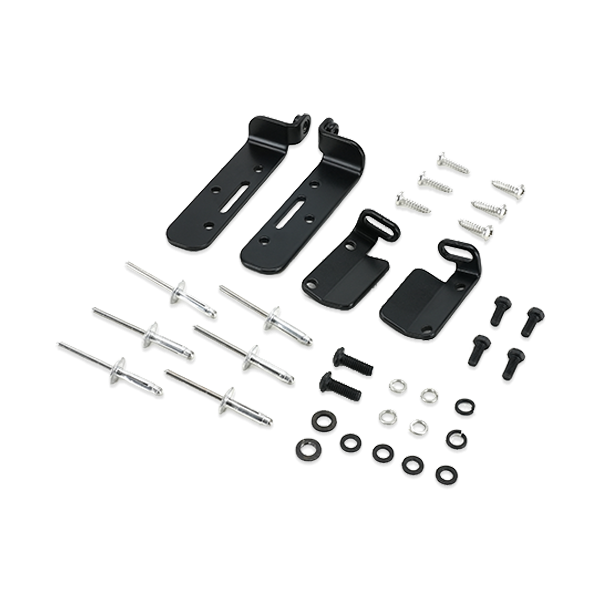

A variant is also available with an integrated white position light, approved for on-road use under UNECE Regulation 148. Combining style with enhanced visibility, Glide LED lightbars are supplied with a side mounting kit as standard, while additional mounting options are available to suit your installation, including a number plate mount or an anti-theft side mounting kit for added security. For underside number plate installations, the side mounting kit should be used in conjunction with our universal number plate mount kit (sold separately).

The Glide range of low-profile formed light bars, like all Lazer LED lighting solutions, are designed and manufactured against unparalleled standards and packed full of advanced and innovative features to maximise performance and longevity. With Glide you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

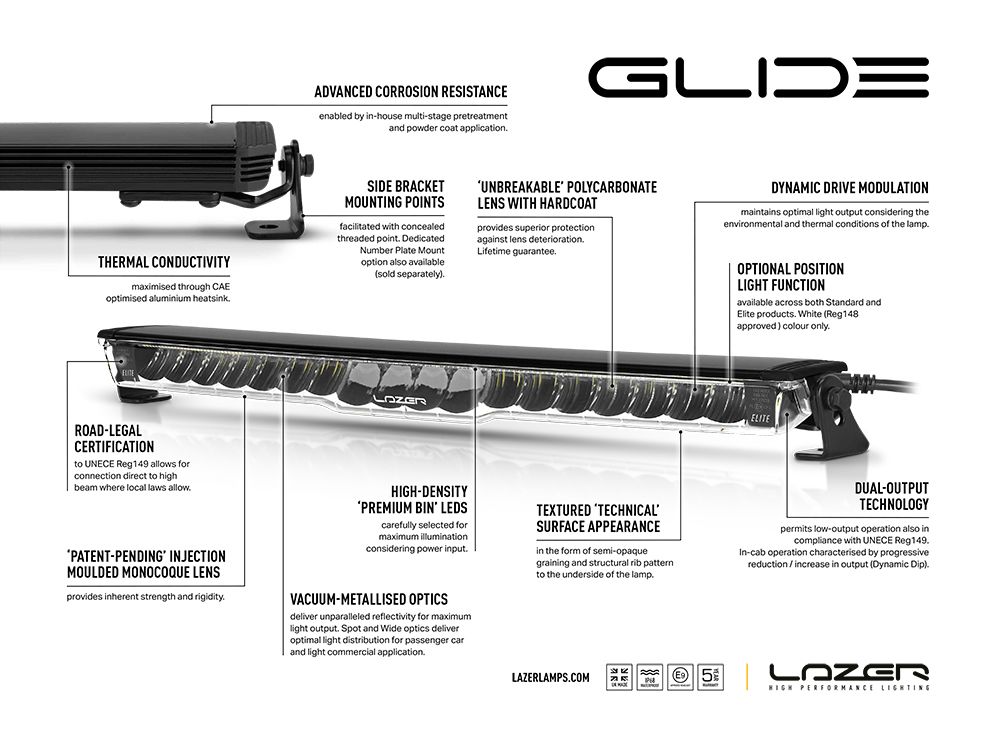

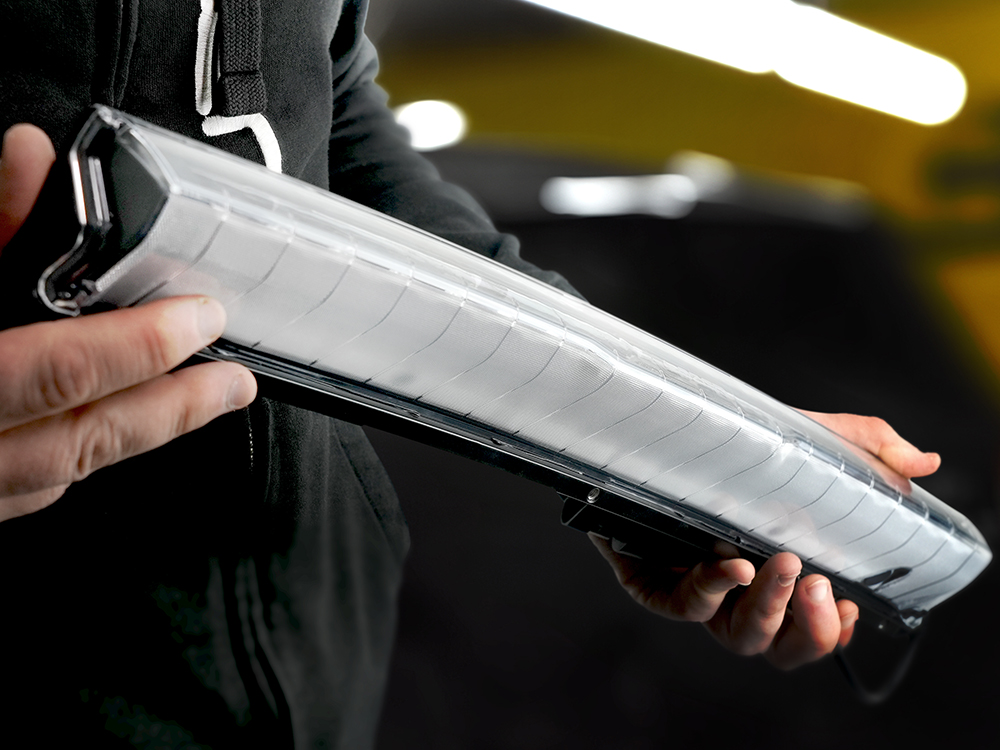

‘Formed’ light bar featuring injection-moulded monocoque lens construction

Curved and ultra low-profile lamp design facilitates OE quality vehicle installation

Patent-pending lamp design

Incorporation of the latest high-intensity ‘premium bin’ LEDs

Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution

Dynamic Dip function for transitioning between high and low output modes

UNECE approved Reg 149 (Class B Driving Light) for on-road high beam function – Low Output / E-Mark mode only

Adoption of black PCB’s for a contemporary and stealth appearance

‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)

Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance

5000K LED colour temperature and high 80CRI maximises sharpness and definition

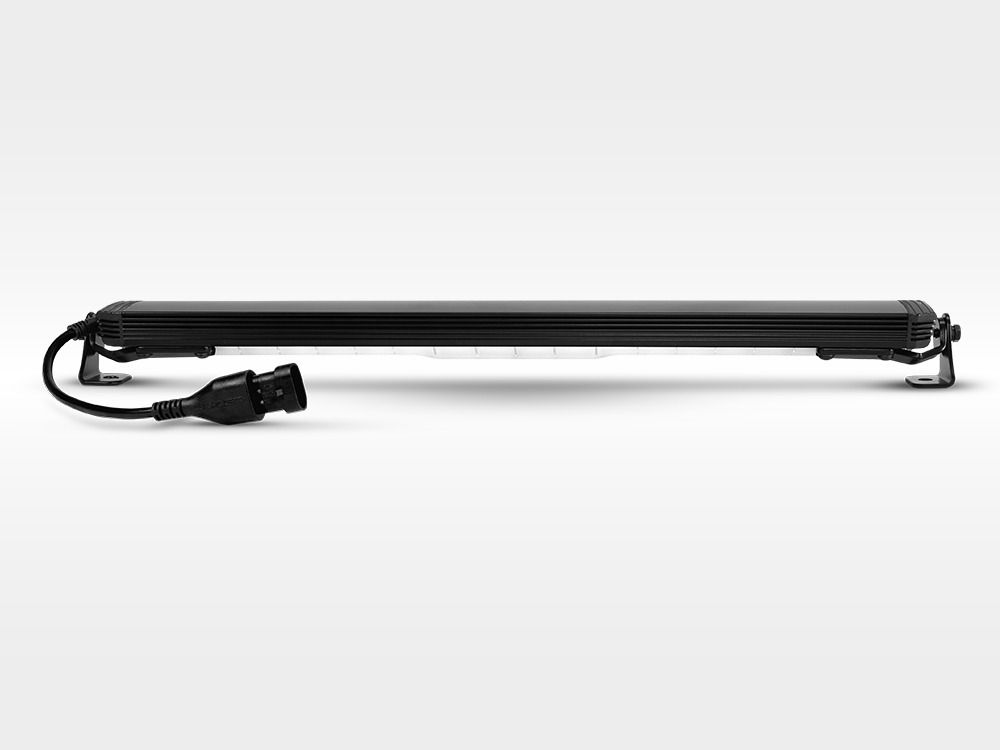

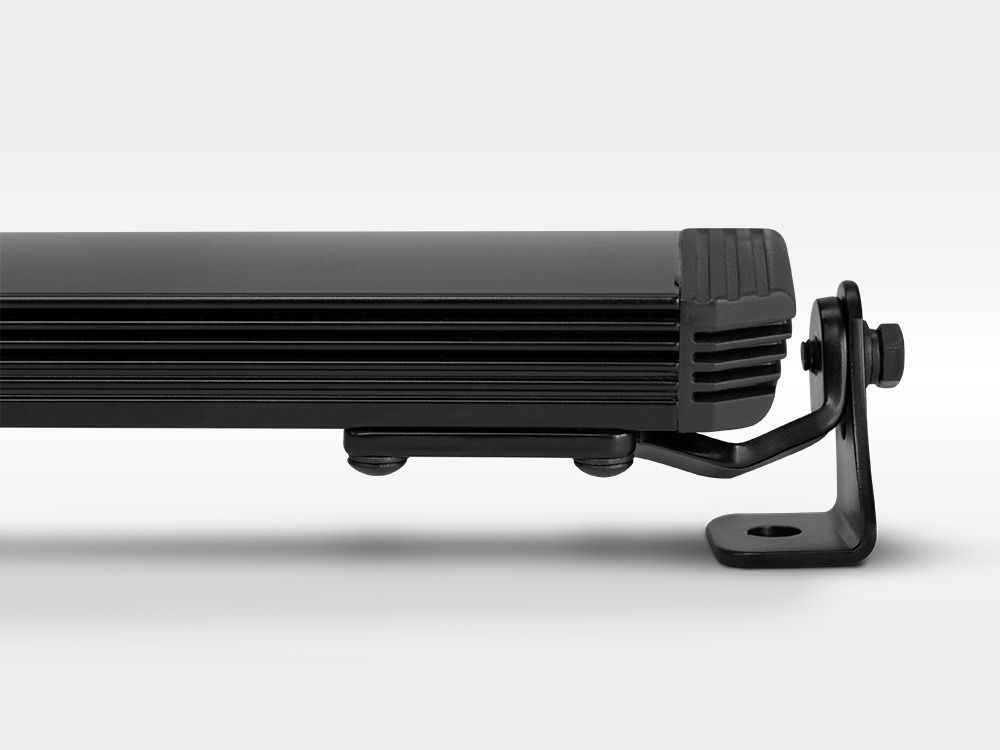

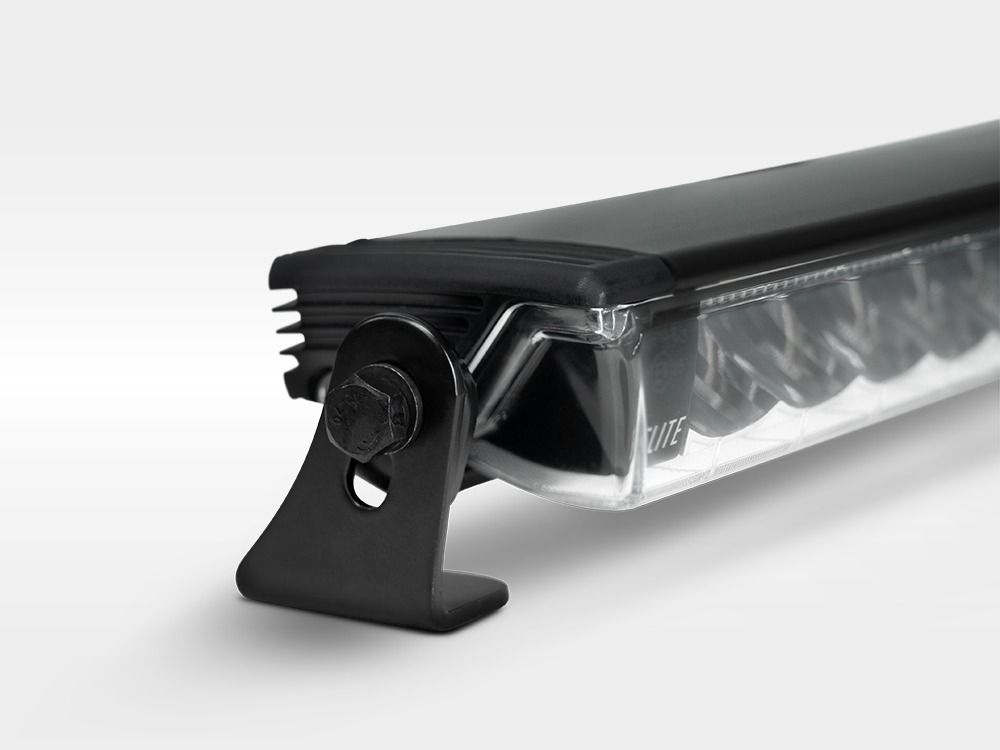

Supplied with side mounting kit – Anti-theft side mounting kit / Number plate mount also available (sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

Over voltage protected

Reverse polarity protected

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

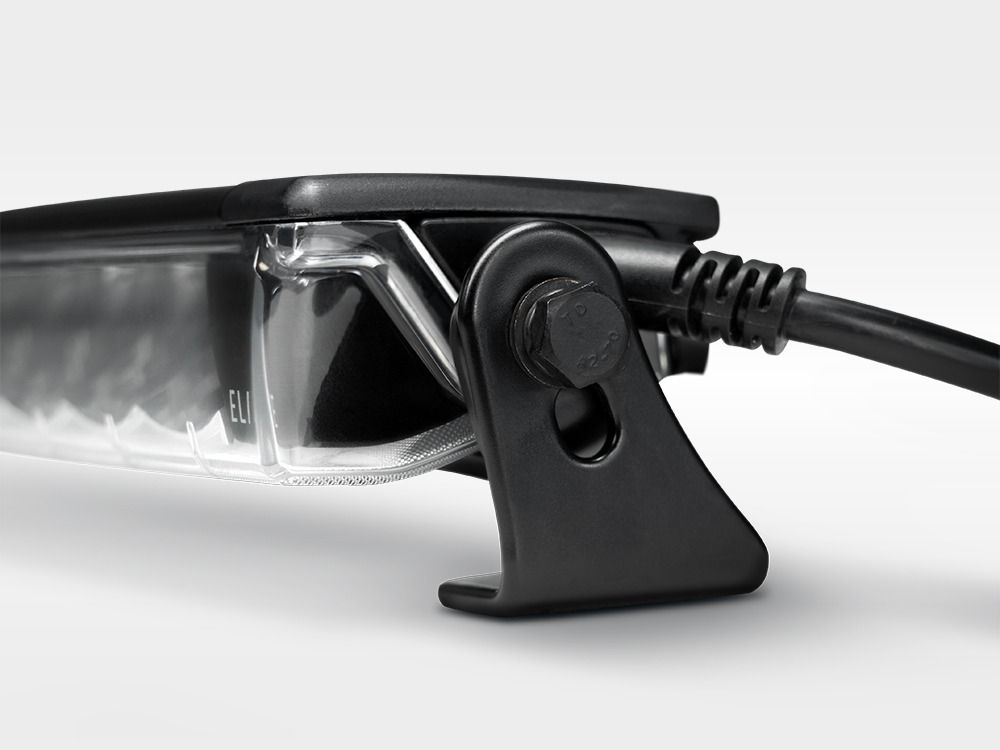

25cm lamp cable with supplied male/female 2-pin Superseal connectors

Designed and manufactured in UK

GLIDE ELITE BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight0.68 kg
HIGH BEAM FUNCTION
Total Luminous Flux12,800 Lm3,840 Lm
Total Driver 'FOV' Flux 8,012 Lm2,403 Lm
Colour Temperature5000K5000K
Power Consumption130 Watts38 Watts
Current Draw (14.4V)9.2 Amps2 Amps
Peak Current Draw12.6 Amps2.7 Amps
Connector2-Pin / 3-Pin Superseal (+20cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only)
Postion Light (white)ECE R148
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1249 metres682 metres
0.5 lx Line883 metres482 metres
1 lx Line624 metres342 metres
3 lx Line361 metres197 metres
Glide Elite photometric diagram
BEAM DISTRIBUTION
Horizontal66 degrees
Vertical14 degrees
Glide Elite beam distribution
Glide Elite Beam Photo
DIMENSIONS
Width517mm
Depth71mm
Height39mm
Glide dimensions diagram
  • Glide Elite LED Lightbar
  • Side Mounting Kit (1131K)
  • Installation Instructions
