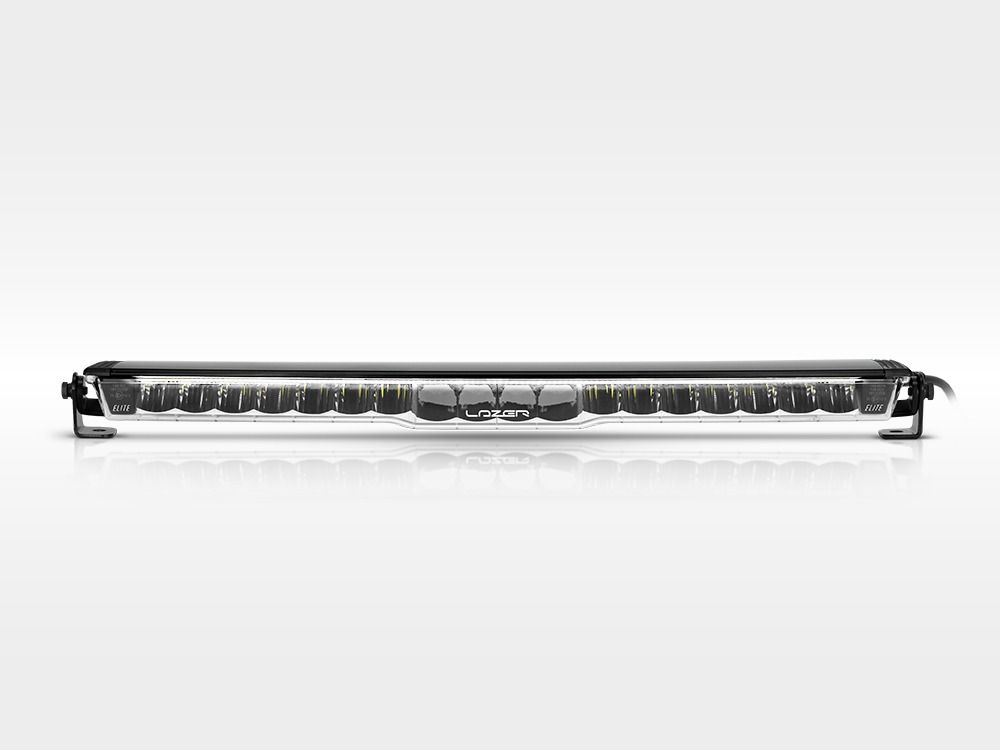

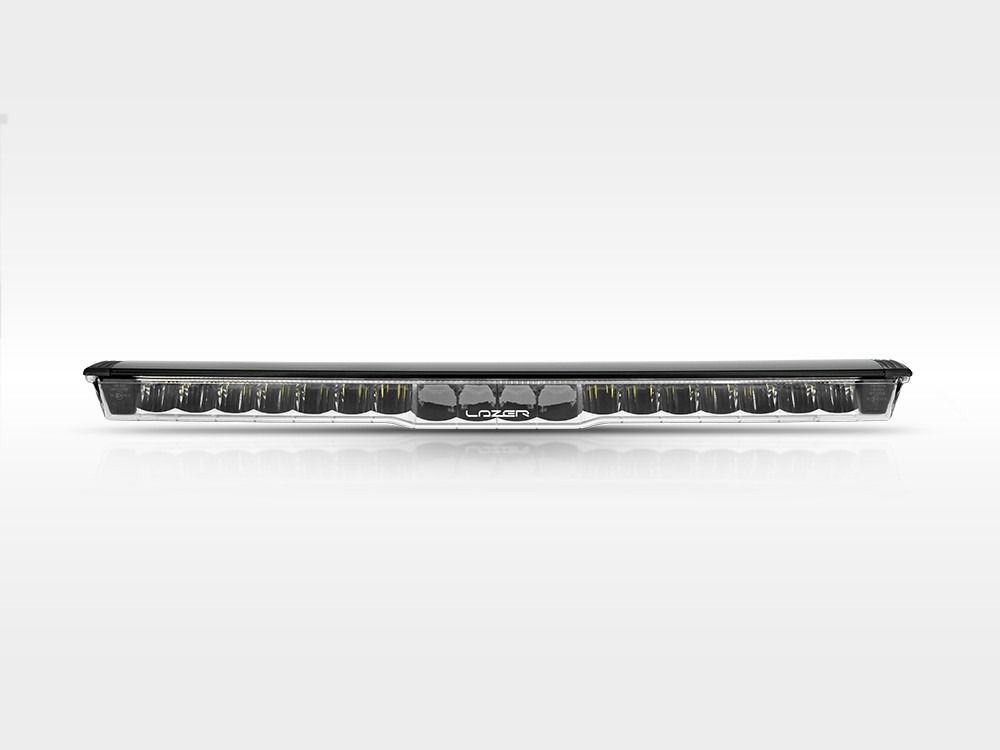

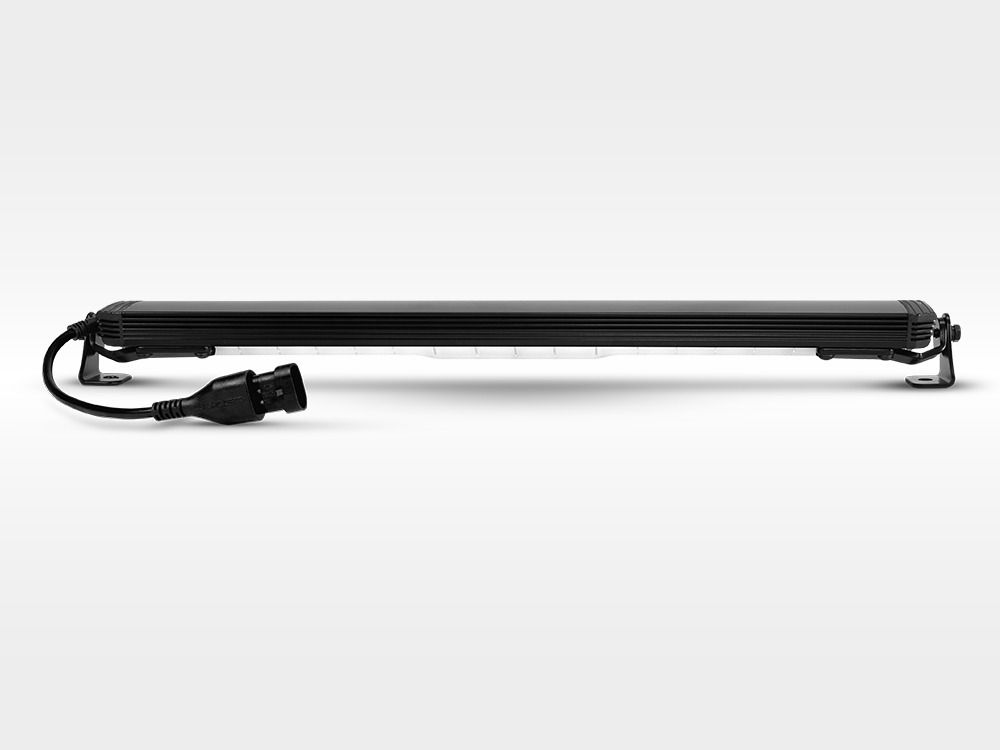

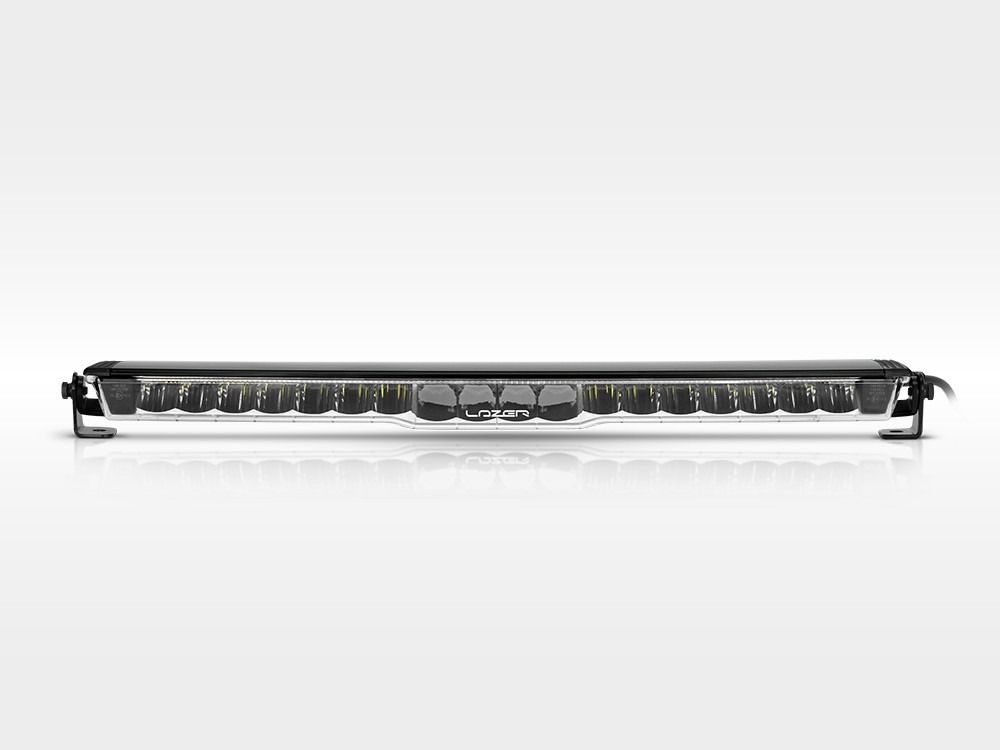

Introducing Glide, the world’s first ‘formed’ LED light bar. Featuring a monocoque lens construction for highly weight-efficient inherent strength and robustness, Glide is a range of 20” curved light bars that deliver so much especially when considering their ultra low-profile design. The enviable balance of exceptional lighting performance and OE quality aesthetics, sympathetic to the front contours of a diverse number of vehicle types, makes, and models, make Glide an exceptional choice particularly within the passenger car and light commercial sectors.

The ’standard’ Glide products represent incredible value considering their design, performance, and build quality. At their core, 18x premium bin LEDs working in unison with the vacuum-metallised optic system to distribute 11,500 raw lumens with strong distance illumination (1 lux @ 548m) and a 60 degree horizontal spread of light.

In-built within each Glide lamp is a Dynamic Dip mode which provides a smooth transition between high and low output modes. The low output mode permits driving in compliance with UNECE Regulation 149 (Double E-Mark) where local laws require, and/or a reduced output which for example reduces glare from highly reflective surfaces such as large road signs. The Dynamic Dip function is activated after the light has been on for >2seconds by simply and quickly flashing the light off and on again.

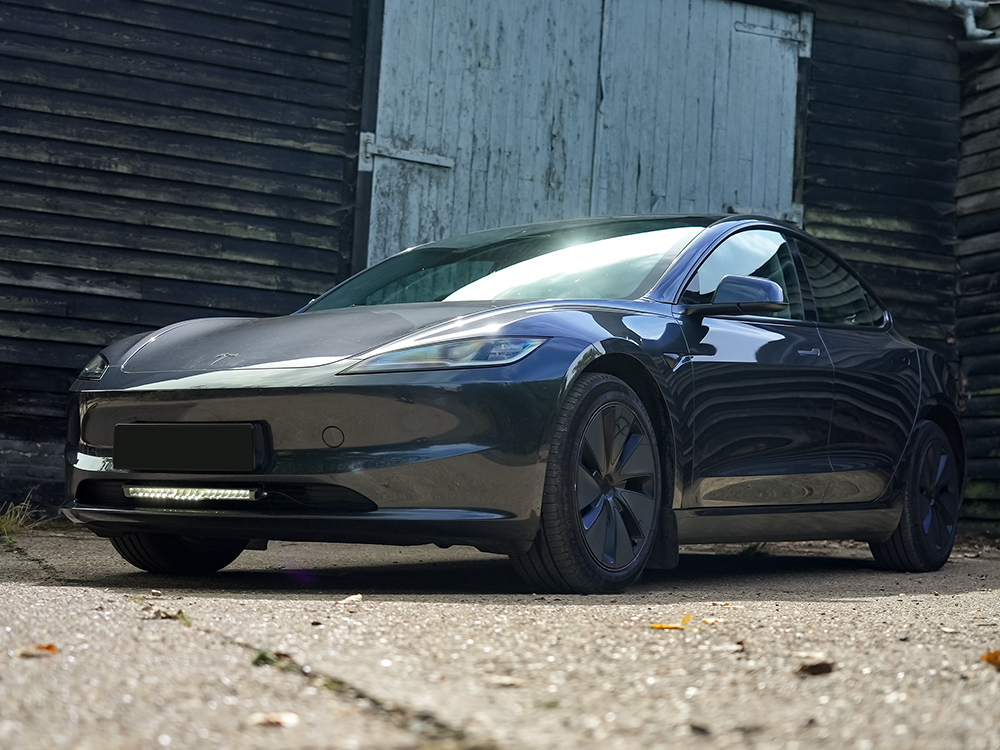

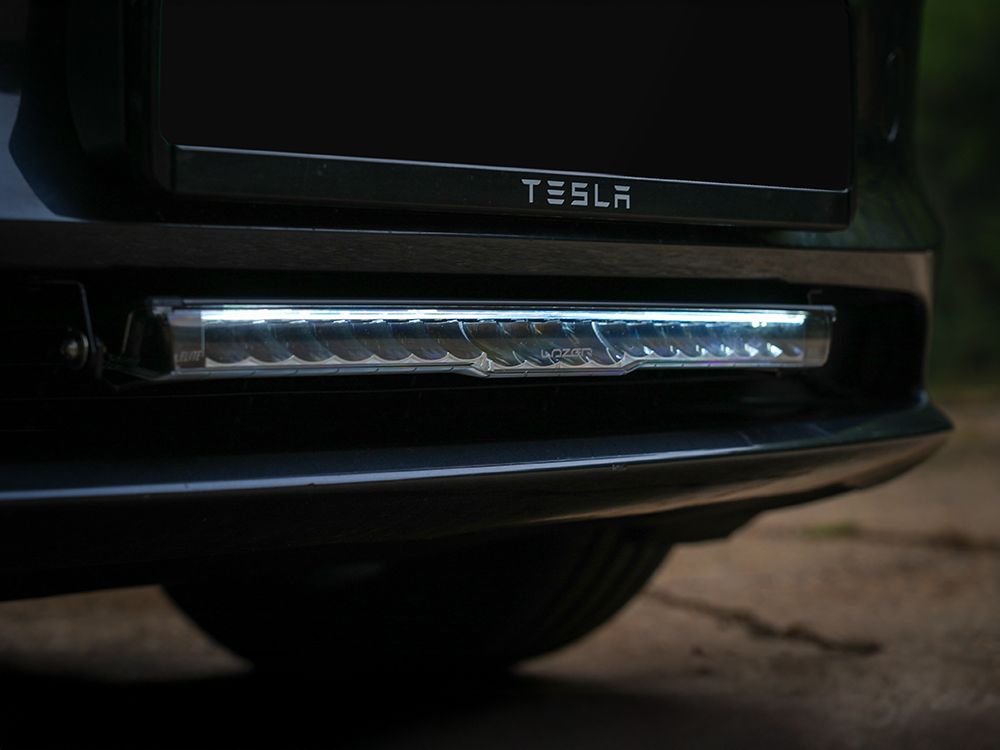

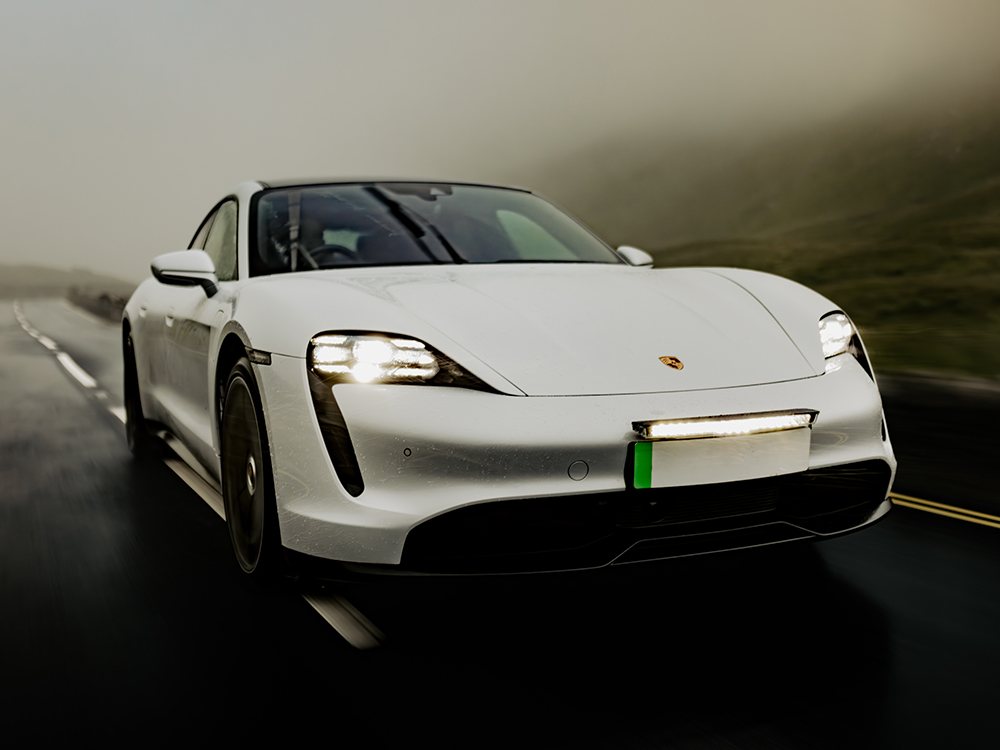

A variant is also available with an integrated white position light, approved for on-road use under UNECE Regulation 148. Combining style with enhanced visibility, Glide LED lightbars are supplied with a side mounting kit as standard, while additional mounting options are available to suit your installation, including a number plate mount or an anti-theft side mounting kit for added security. For underside number plate installations, the side mounting kit should be used in conjunction with our universal number plate mount kit (sold separately).

The Glide range of low-profile formed light bars, like all Lazer LED lighting solutions, are designed and manufactured against unparalleled standards and packed full of advanced and innovative features to maximise performance and longevity. With Glide you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

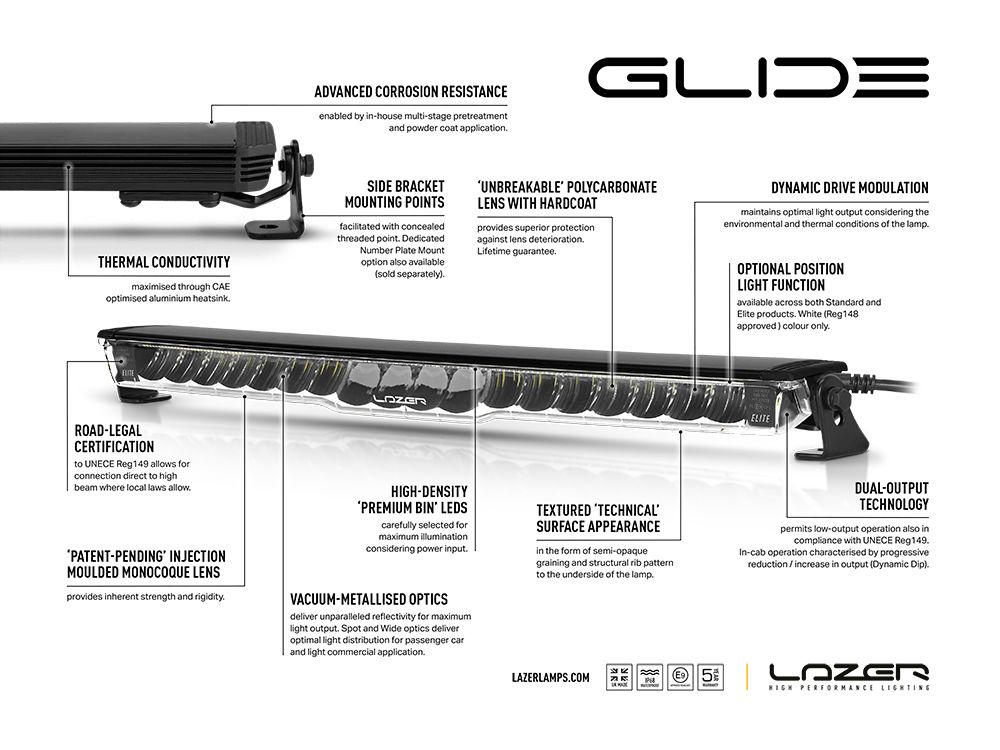

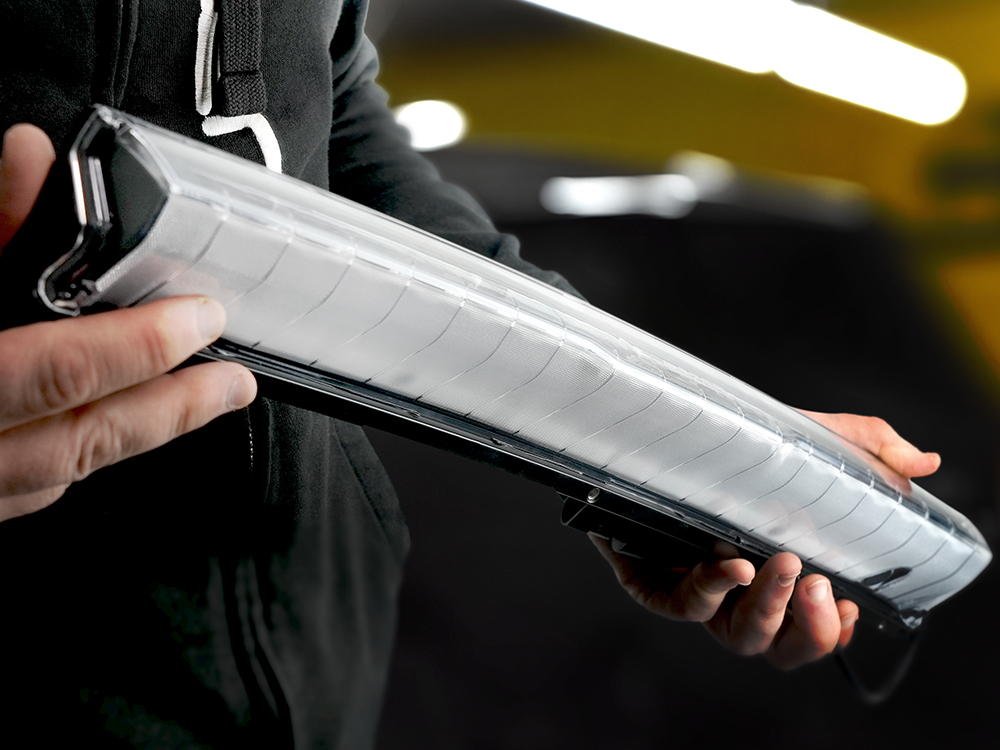

‘Formed’ light bar featuring injection-moulded monocoque lens construction

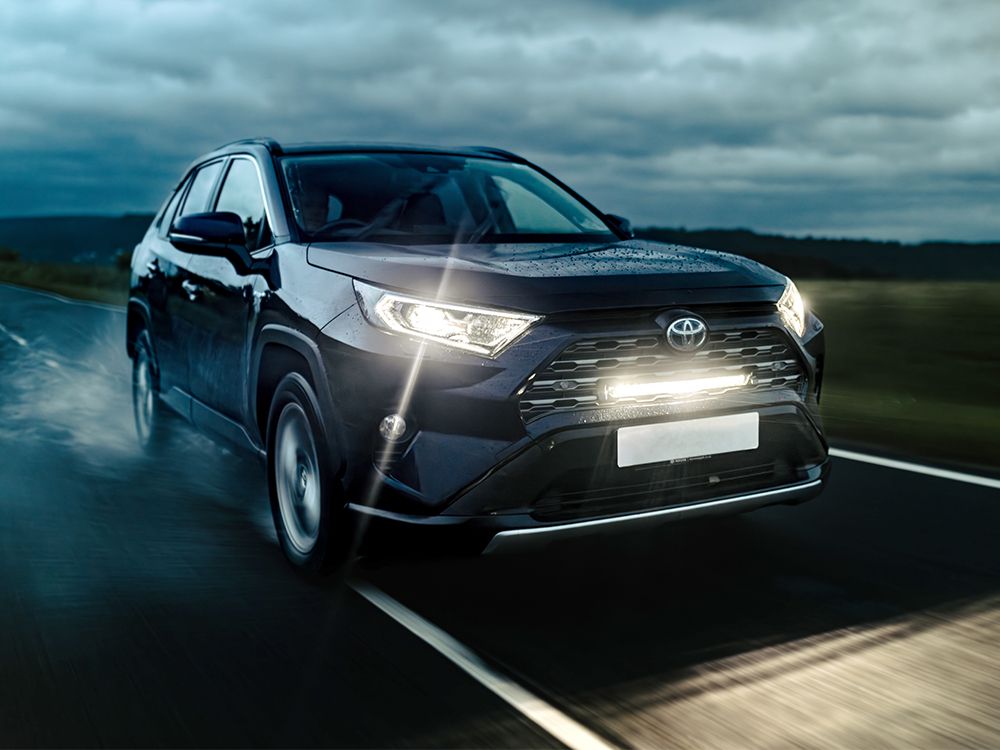

Curved and ultra low-profile lamp design facilitates OE quality vehicle installation

Patent-pending lamp design

Incorporation of the latest high-intensity ‘premium bin’ LEDs

Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution

Dynamic Dip function for transitioning between high and low output modes

UNECE approved Reg 149 (Double E-Mark, Class B Driving Light) for on-road high beam function – Low Output/E-Mark mode only

Adoption of black PCB’s for a contemporary and stealth appearance

‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)

Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance

5000K LED colour temperature and 80CRI maximises sharpness and definition

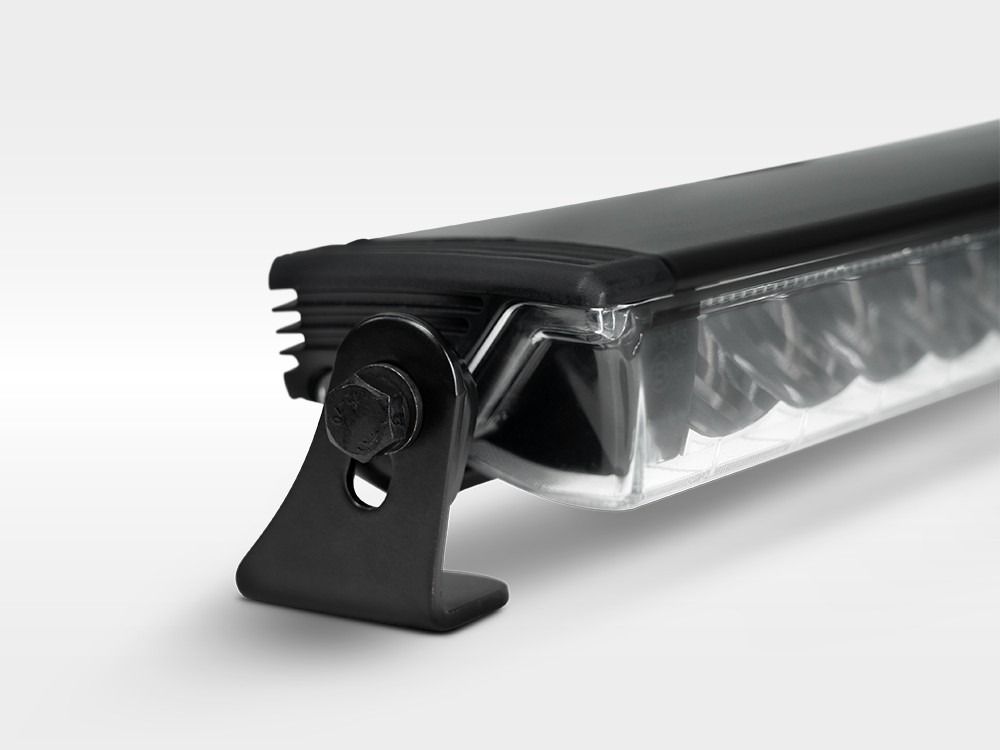

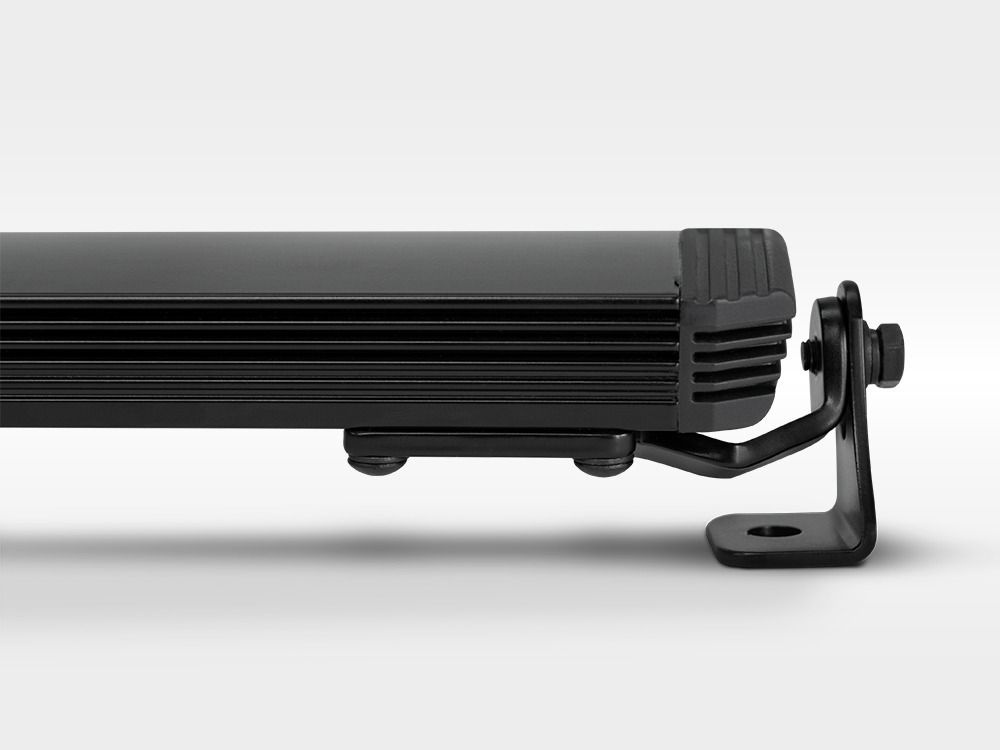

Supplied with side mounting kit – Anti-theft side mounting kit also available (sold seperately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

Over voltage protected

Reverse polarity protected

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

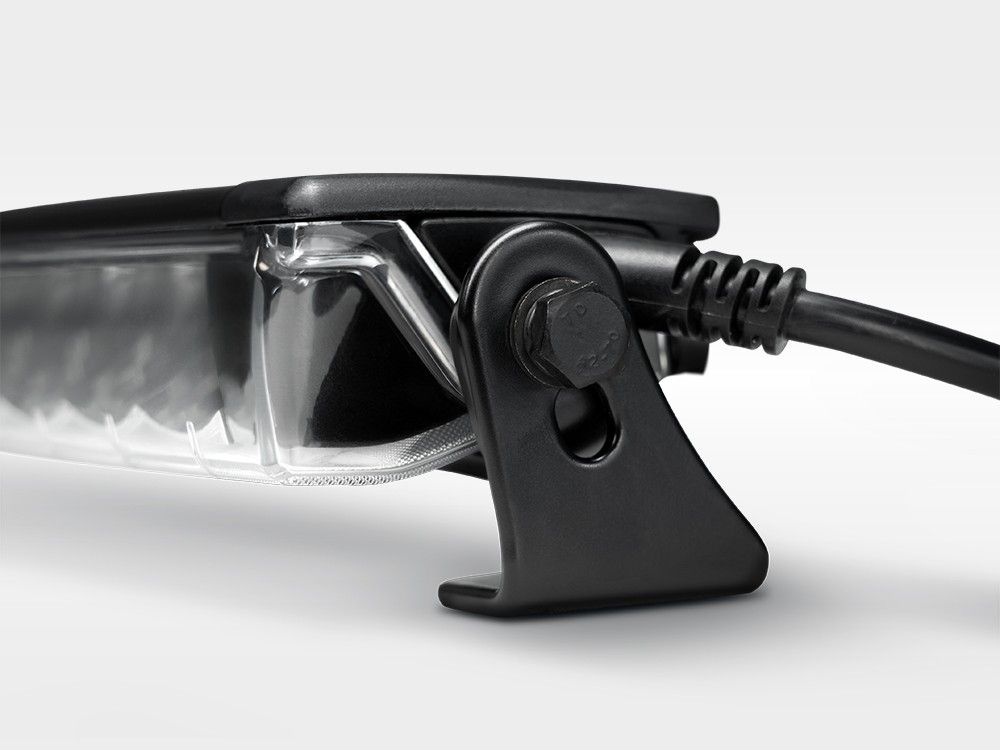

25cm lamp cable with supplied male/female 2-pin Superseal connectors

Designed and manufactured in UK

GLIDE BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight0.68 kg
HIGH BEAM FUNCTION
Total Luminous Flux11,500 Lm4,025 Lm
Total Driver 'FOV' Flux 6,958 Lm2,435 Lm
Colour Temperature5000K5000K
Power Consumption120 Watts42 Watts
Current Draw (14.4V)8.3 Amps2.3 Amps
Peak Current Draw9.6 Amps2.6 Amps
Connector2-Pin / 3-Pin Superseal (+20cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only)
Postion Light (white)ECE R148
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1095 metres648 metres
0.5 lx Line775 metres458 metres
1 lx Line548 metres324 metres
3 lx Line316 metres187 metres
Glide photometric diagram
BEAM DISTRIBUTION
Horizontal60 degrees
Vertical13 degrees
Glide beam distribution
Glide Beam Photo
DIMENSIONS
Width517mm
Depth71mm
Height39mm
Glide dimensions diagram
  • Glide LED Lightbar
  • Side Mounting Kit (1131K)
  • Installation Instructions
