INEOS Grenadier Grille Kit (for Sentinel 7'')
INEOS Grenadier Grille Kit (for Sentinel 7'') INEOS Grenadier Grille Kit (for Sentinel 7'') INEOS Grenadier Grille Kit (for Sentinel 7'') INEOS Grenadier Grille Kit (for Sentinel 7'') INEOS Grenadier Grille Kit (for Sentinel 7'') INEOS Grenadier Grille Kit (for Sentinel 7'') INEOS Grenadier Grille Kit (for Sentinel 7'')

INEOS Grenadier Grille Kit (for Sentinel 7'')

Rating:
100%
Product Code
#GREN-02

From A$1,565.00

To A$1,840.00

1. Lighting Options (wiring included) *
INEOS Grenadier Grille Kit (for Sentinel 7'')

In stock

Find a Stockist

A$1,565.00

PAYMENT & DELIVERY

Orders will be shipped within 1 working day (stock permitting). Shipping costs will be calculated at the checkout, for more information please click here. For International orders and deliveries, please use or global website - www.lazerlamps.com.

Upgrade the look and performance of your INEOS Grenadier with our custom-fit Grille Integration Kit, designed to replace the factory-installed grille lights with a sleek, OE-style finish and powerful lighting performance.

Each kit includes a pair of Sentinel 7” High Performance LED driving lights, available in two variants to suit different driving needs. Standard delivers the proven Sentinel performance Lazer is known for, with powerful, well-balanced light for confident driving after dark; and Elite steps up the performance with greater light intensity and a wider spread for maximum visibility, complemented by a distinctive integrated position light that gives your Grenadier a bold look.

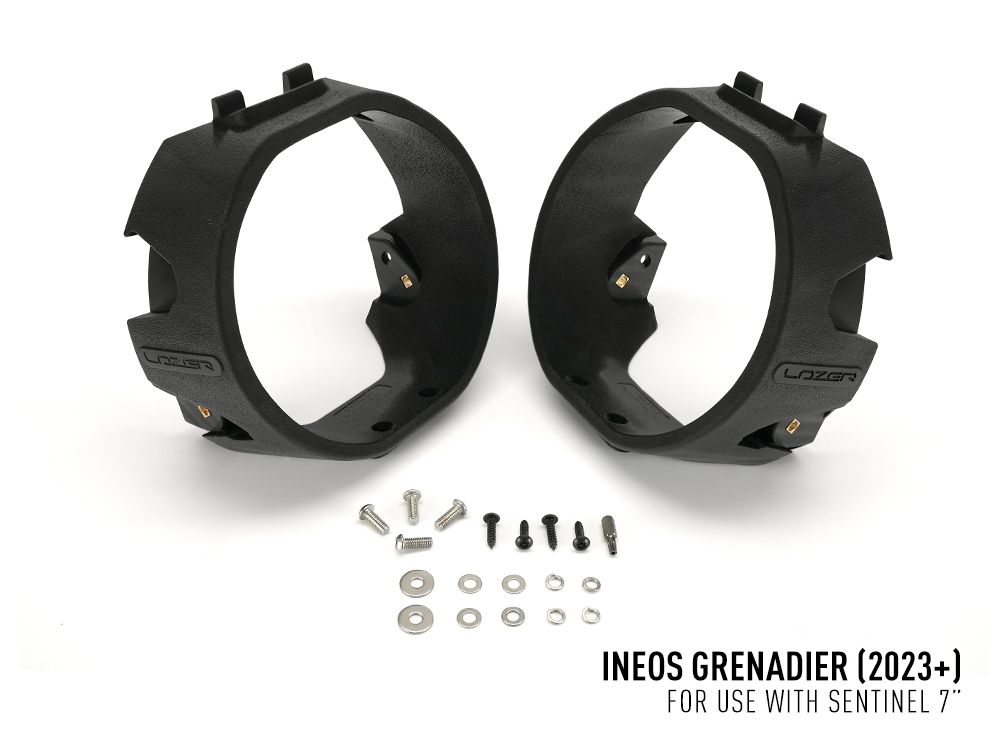

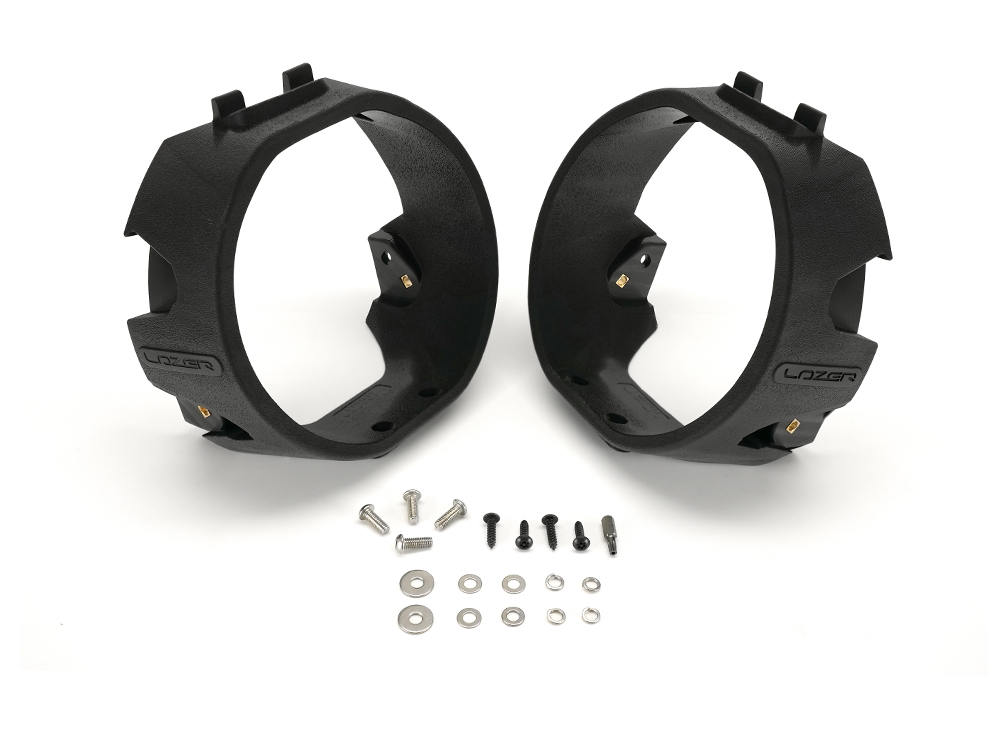

The lights are mounted using two precision-engineered bracket surrounds that fit seamlessly into the Grenadier's standard centre grille. Precision engineered in-house in the UK from UV-stable, high-strength composite, the brackets are fully weather and chemical resistant, with a grained, colour-shift finish that perfectly complements the original grille texture. The kit also includes cutting guides, a wiring kit, and self-tapping screws for an easy, secure and long-lasting installation.

Please note: The INEOS Grenadier Grille Integration Kit is carefully engineered and optimised for use with Sentinel 7” High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps' branded products. Lens covers are not compatible with lights installed using this kit.

Bespoke vehicle integration kit for Lazer LED light installation

Custom fit for INEOS Grenadier

Available with: Sentinel 7’’ High Performance LED lights

Kit also includes bespoke mounting bracket surrounds and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

  2x SENTINEL 7'' (NON-PL)
(BOOST MODE)
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight3 kg
HIGH BEAM FUNCTION
Total Luminous Flux10,416 Lm
Total Driver 'FOV' Flux †6,500 Lm
Colour Temperature5000K
Power Consumption120 Watts
Current Draw (14.4V)8.6 Amps
CERTIFICATION
IP Rating #IP68
High Beam (e9 approval)UNECE R149 (Ref: 12.5 per lamp) - in Low output mode onlyEU Road Standards
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle60° / 12°
0.25 lux1720m
0.5 lux1217m
1 lux860m
3 lux497m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


Sentinel 7 photometric & Beam distribution
  SENTINEL 7'' ELITE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight3 kg
HIGH BEAM FUNCTION
Total Luminous Flux20,496 Lm
Total Driver 'FOV' Flux †12,760 Lm
Colour Temperature5000K
Power Consumption232 Watts
Current Draw (14.4V)15.2 Amps
CERTIFICATION
IP Rating #IP68
High Beam (e9 approval)UNECE R149 (Ref: 12.5 per lamp) - in Low output mode onlyEU Road Standards
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2
PHOTOMETRIC DATA
Horizontal/Vertical Beam Angle65° / 18°
0.25 lux1744m
0.5 lux1233m
1 lux872m
3 lux503m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


Sentinel 7 Elite photometric diagram

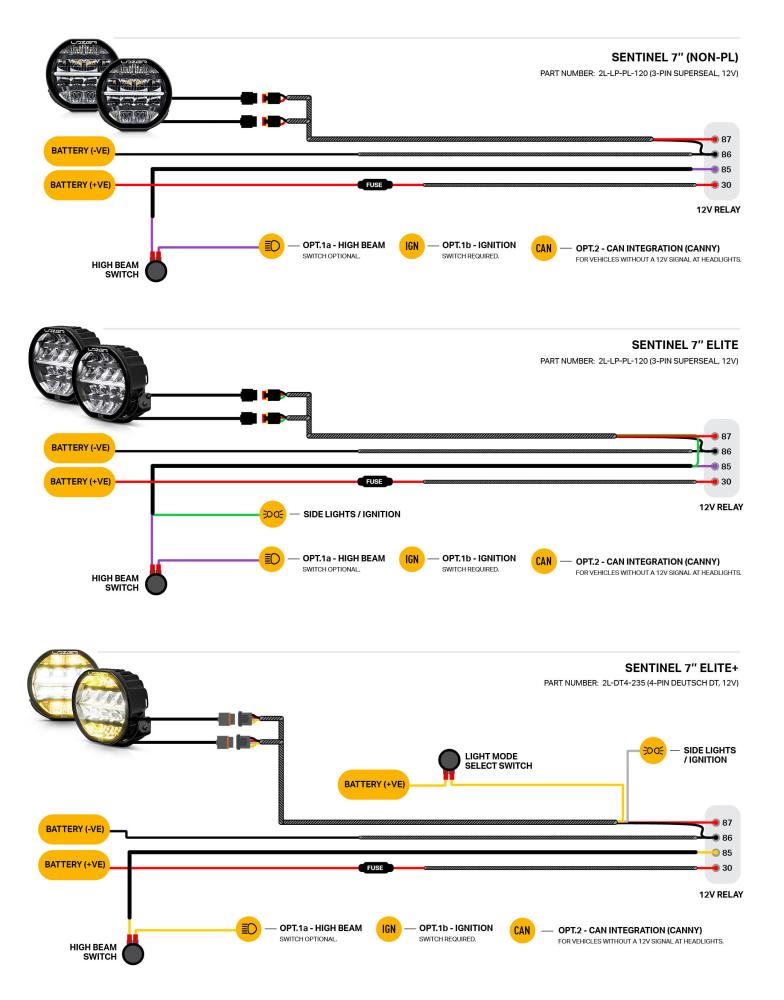

Sentinel 7 wiring diagrams
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x LED Lights (Sentinel 7'')
  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.

@LAZERLAMPS
