Land Rover Defender (2020+) - A Pillar Mounting Kit

Land Rover Defender (2020+) - A Pillar Mounting Kit

Be the first to review this product

Product Code

#VIFK-DEF2020-UT25

From A$135.00

To A$594.00

1. Mounting Kit *

Qty

2. Lighting Options

Qty

3. Wiring Kit

Land Rover Defender (2020+) - A Pillar Mounting Kit

In stock

Qty

Find a Stockist

A$135.00

PAYMENT & DELIVERY

Orders will be shipped within 1 working day (stock permitting). Shipping costs will be calculated at the checkout, for more information please click here. For International orders and deliveries, please use or global website - www.lazerlamps.com.

Product description

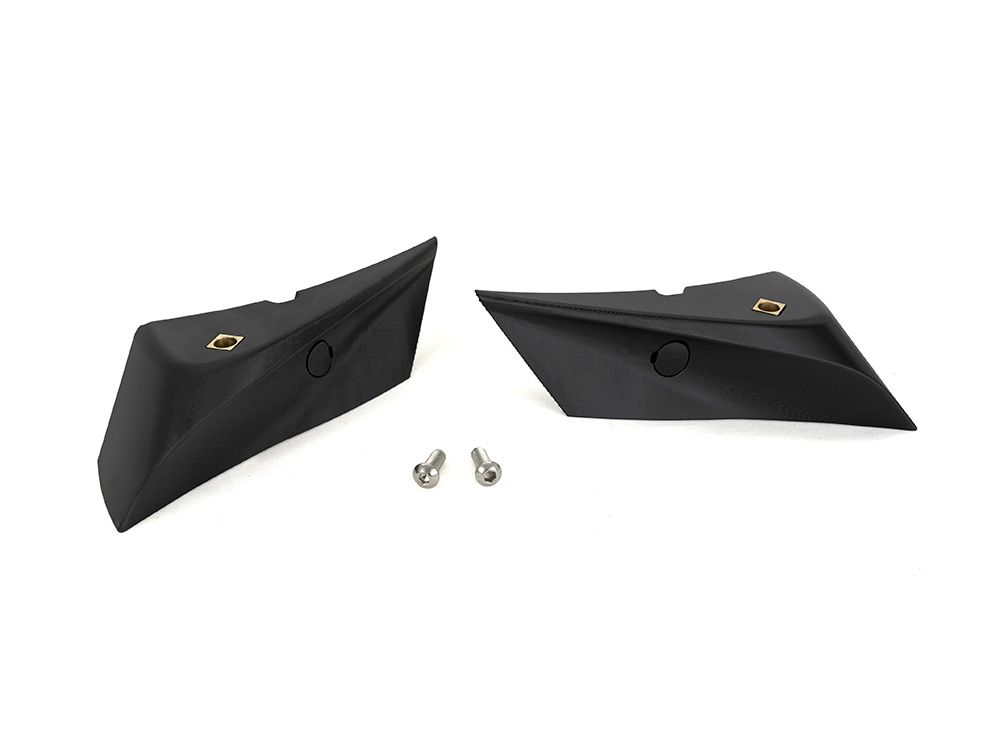

A pair of custom-made mounting brackets, designed around the A-pillar of the Land Rover Defender (2020+), to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights. The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar, and with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.

Optimised for mounting either Utility-25 or Utility-25 MAXX work lights, the brackets include design features to facilitate the installation of the lights as well as routing of the lamp cables and wiring.

LIGHTS AND WIRING SOLD SEPARATELY.

Product Features

A-pillar mounting brackets comprising left-hand and right-hand parts

Custom fit for Land Rover Defender (MY 2020+)

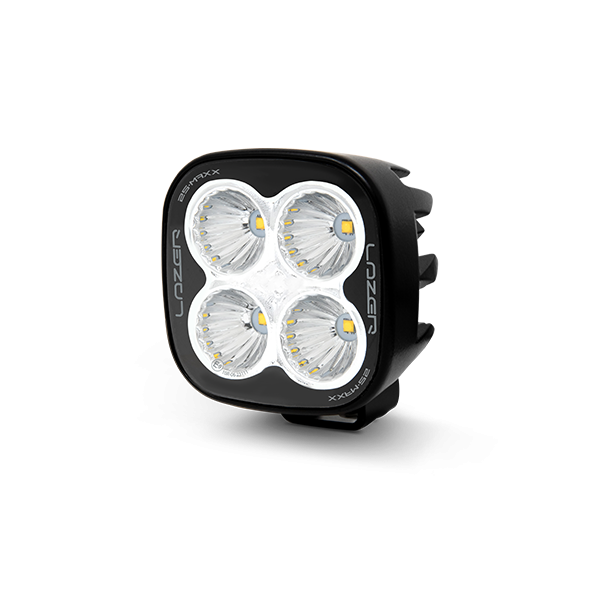

Compatible with: Utility-25 / Utility-25 MAXX LED work lights

Produced from high strength, UV-stable, composite material

Easy installation with no drilling required

5-year warranty

Made in Britain

Technical Specifications

	1x Utility-25	1x Utility-25 MAXX
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hours	50,000 hours
Weight	360 gr	360 gr
HIGH BEAM FUNCTION
Total Luminous Flux	3016 Lm	4560 Lm
Colour Temperature	5000K	5000K
Power Consumption	25 Watts	45 Watts
Current Draw (at 14.4V)	1.6 Amps	3.1 Amps
Connector	2-Pin Deutsch DT (+28cm Cable)	2-Pin Deutsch DT (+28cm Cable)
CERTIFICATION
IP Rating #	IP68 / IP69K	IP68 / IP69K
EMC Standard	ECE R10	ECE R10
EMC Protection	CISPR-25 (Class 5)	CISPR-25 (Class 4)
Salt Spray Test	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2
OPERATING CONDITIONS
Operating Temperature	-40deg C ... +90degC	-40deg C ... +90degC
Vibration (BS EN 60068-2-64)	10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz	10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
DIMENSIONS
Width	80 mm	80 mm
Depth	56 mm	56 mm
Height	80 mm	80 mm
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	78^o / 78^o	78^o / 78^o
1 Lux	57m	71m
5 Lux	25m	32m
20 Lux	13m	16m
50 Lux *	8m*	10m*

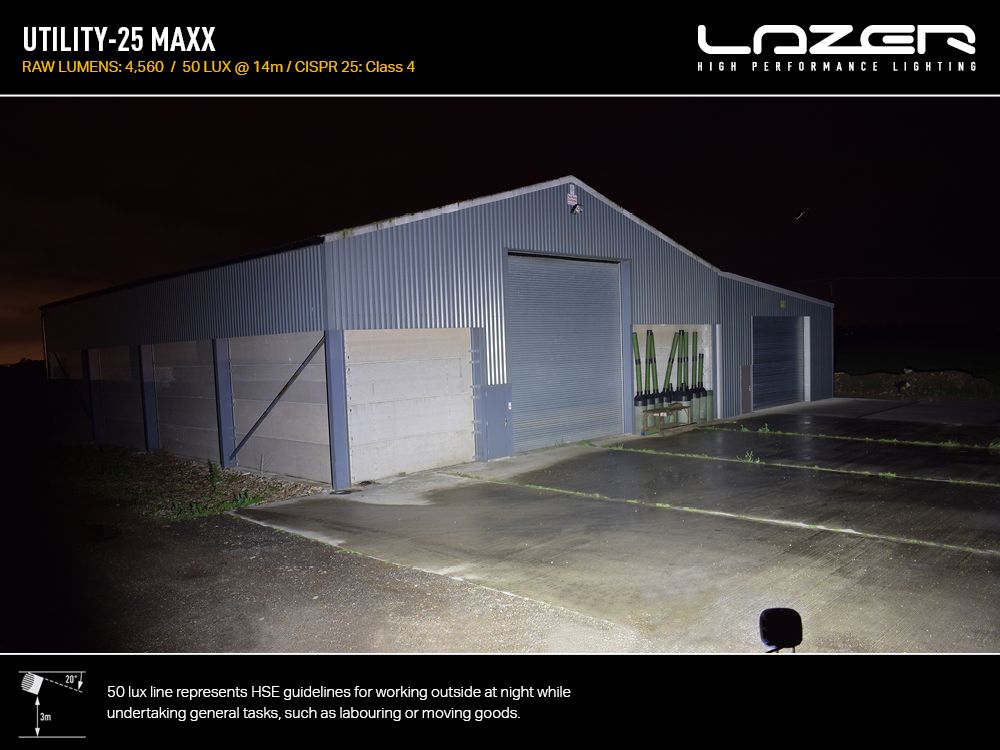

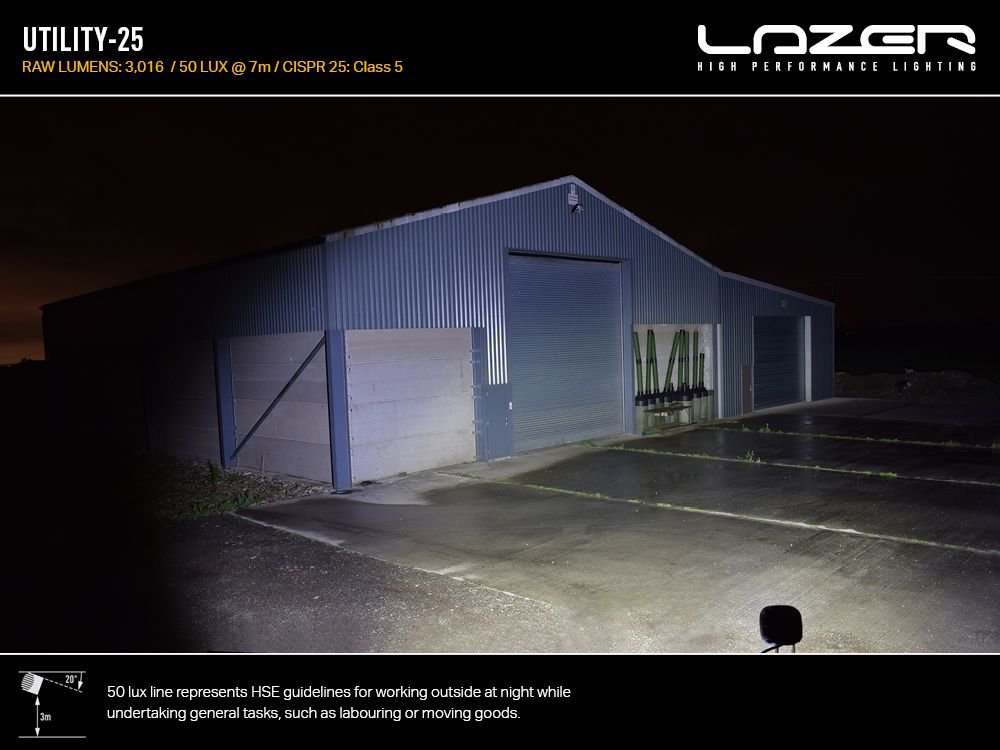

* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Whats included

LH/RH Mounting Brackets M6 Fasteners Fitting instructions available in the downloads section below.

Downloads

Downloads
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW) Utility-25 - Product Information Sheet(3.65 MB) Utility-25 MAXX - Product Information Sheet(2.97 MB) Land Rover Defender (2020+) - A Pillar Mounting Kit - Instructions(4.45 MB)
