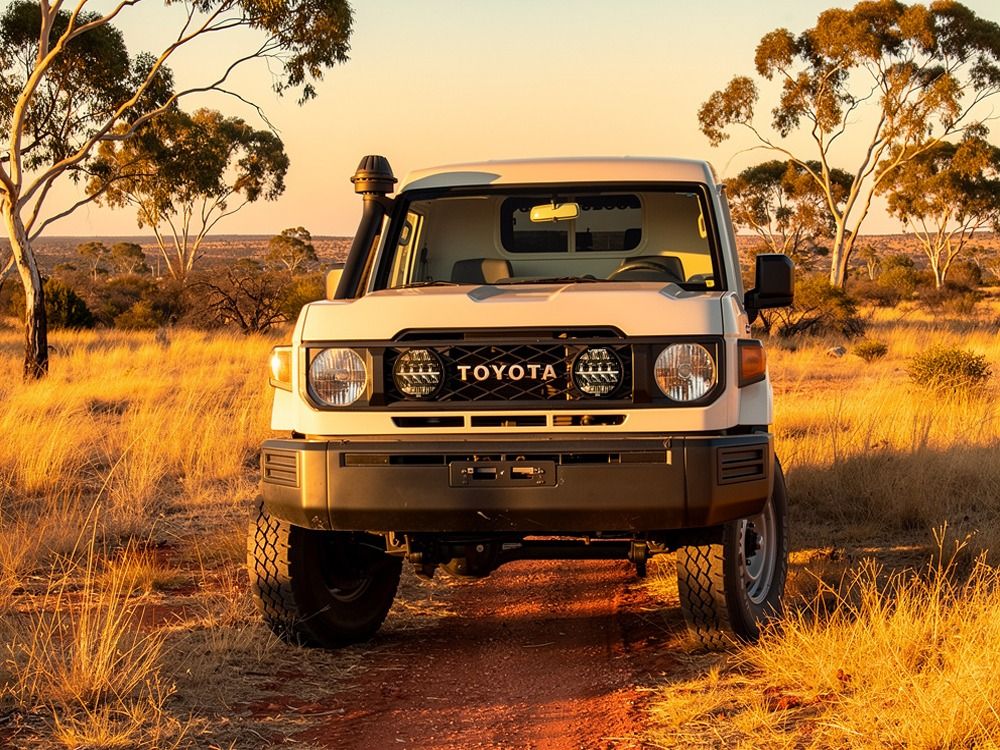

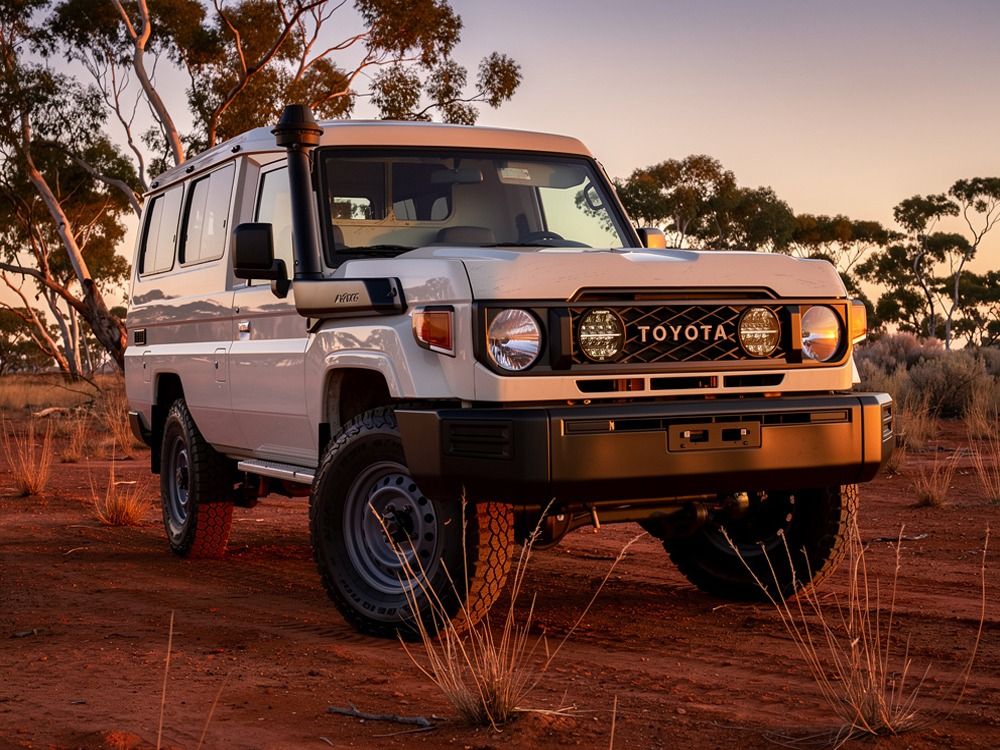

Toyota LC70 Series (2023+) Grille Kit

Bespoke vehicle integration kit for Lazer LED light installation

Custom fit for Toyota Land Cruiser 70 Series (2023+)

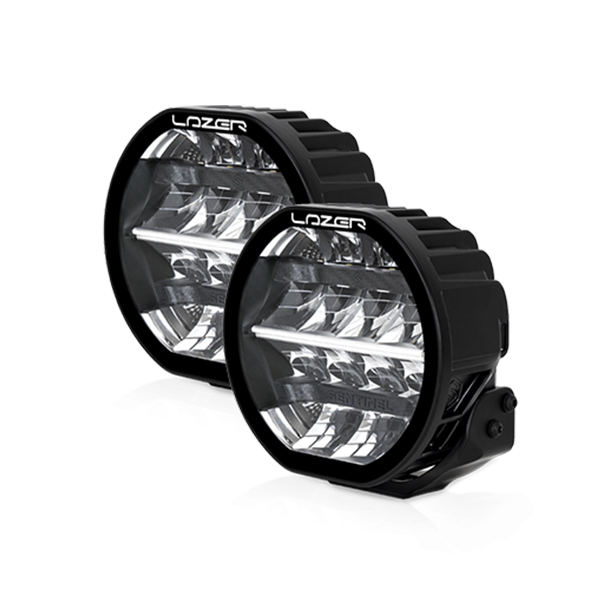

Available with: Sentinel 7’’ High Performance LED lights

Kit also includes bespoke mounting bracket surrounds and two-lamp wiring kit

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

Technical Specifications


2x
SENTINEL 7''
(BOOST MODE)

2x

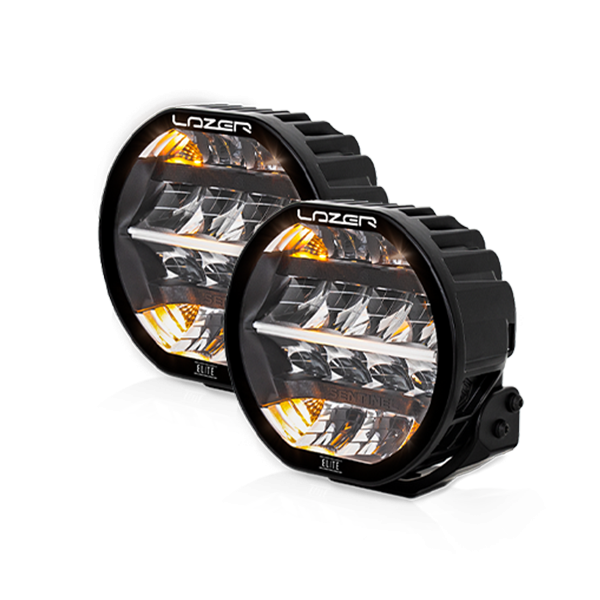

SENTINEL 7'' ELITE
(BOOST MODE)


Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 3 kg 3 kg

HIGH BEAM FUNCTION
Total Luminous Flux 10,416 Lm

20,496 Lm

Total Driver 'FOV' Flux † 6,500 Lm 12,760 Lm
LED Colour White (5000K) White (5000K)
Power Consumption  120 Watts 232 Watts
Current Draw (14.4V) 8.6 Amps 15.2 Amps
Connector 2-Pin Superseal
(+25cm Cable)
3-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68
EMC Certification ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2

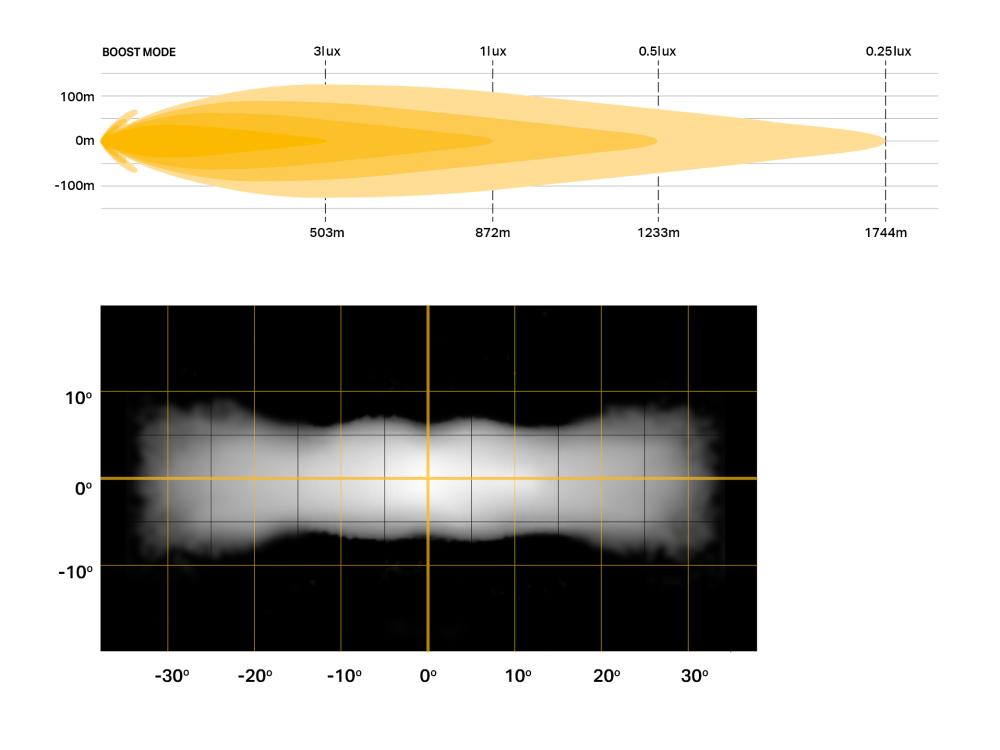

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 60° / 12° 65° / 18°
0.25 Lux 1720m 1744m
0.5 Lux 1217m 1233m
1 Lux 860m 872m
3 Lux 497m 503m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included

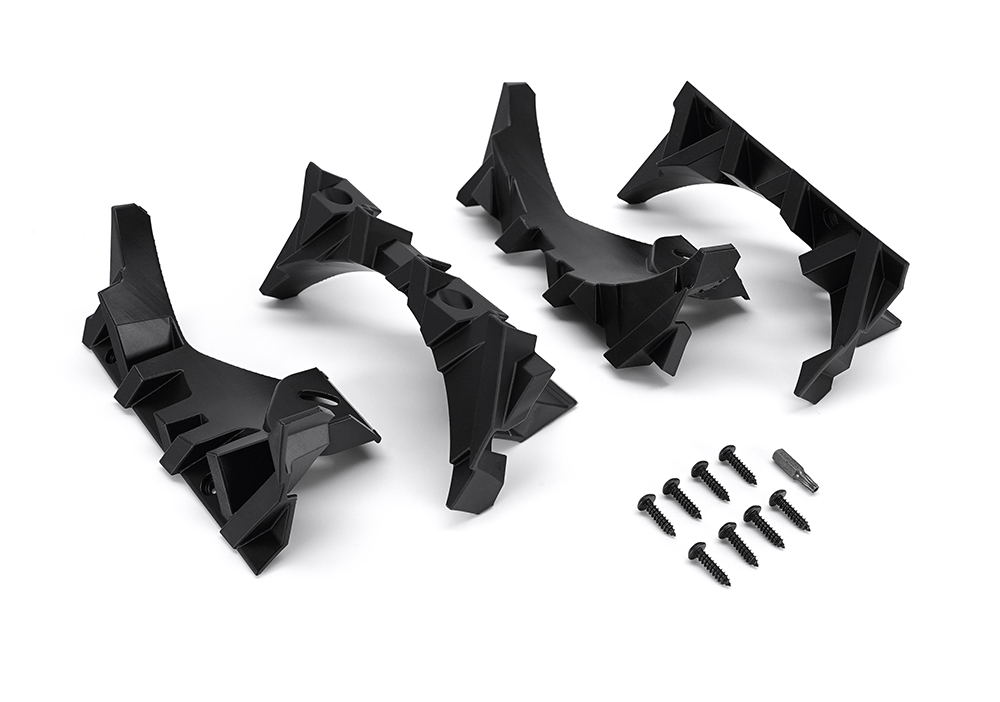

  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x LED Lights (Sentinel 7'')

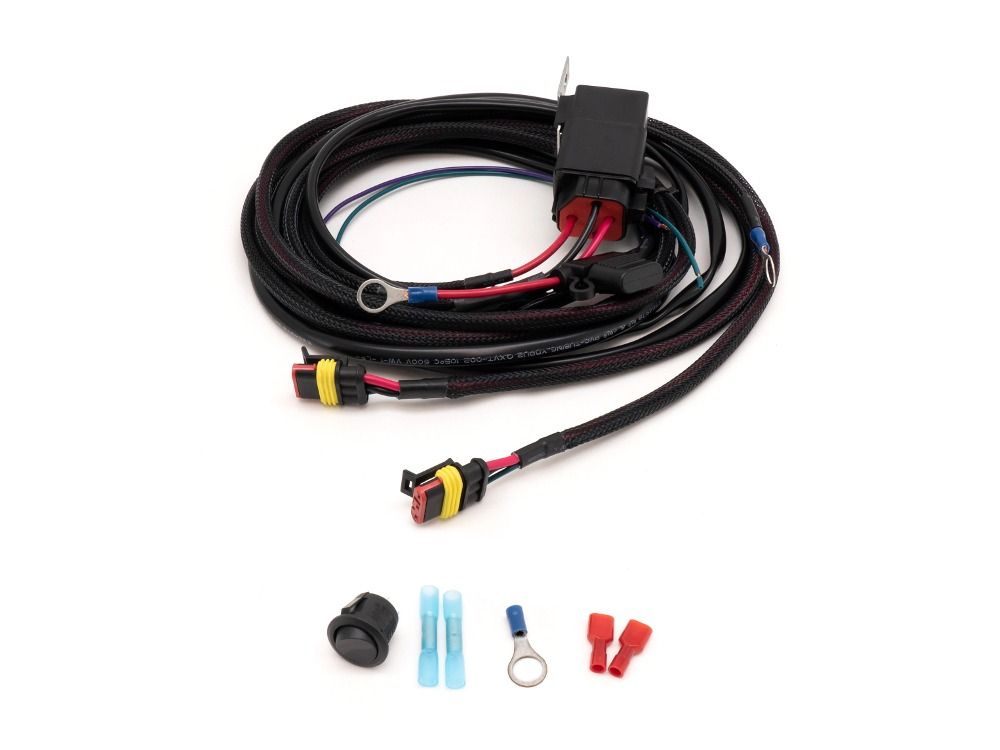

  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
Videos

Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel — click here to explore!



Write Your Own Review
You're reviewing:Toyota LC70 Series (2023+) Grille Kit
Your Rating

Toyota LC70 Series (2023+) Grille Kit

Product Code
#LC70-02

From A$1,385.00

To A$1,660.00

Toyota LC70 Series (2023+) Grille Kit

In stock

Find a
Stockist

A$1,385.00

For an OE-quality auxiliary LED light installation, Lazer Grille Integration Kits provide bespoke mounting brackets for quick, easy, and secure fitting of Lazer High Performance LED lights within the front grille of popular road cars, pick-up trucks, and light commercial vehicles. Designed to integrate seamlessly with each vehicle's original styling, the resulting lighting setup is both robust and secure, with added protection against theft.

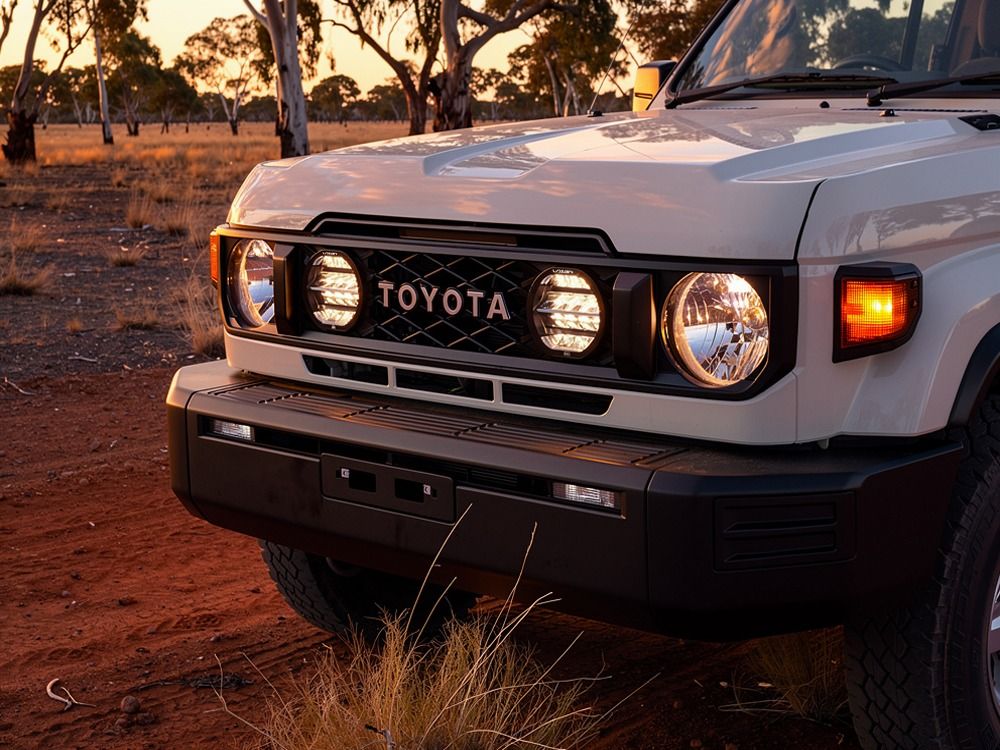

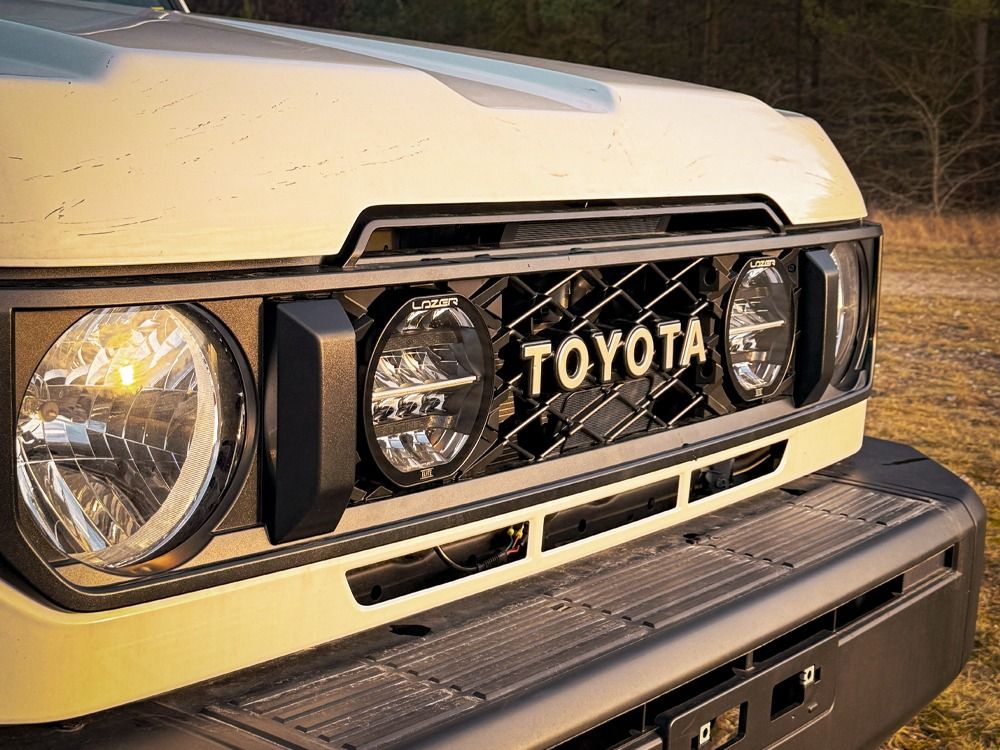

The Toyota LC70 Series (2023+) Grille Integration Kit includes a pair of Sentinel 7” High Performance LED driving lights, supplied with precision-engineered mounting brackets pre-attached to each lamp, alongside a wiring kit and additional fixings to ensure a seamless installation. The brackets fit perfectly within the standard center grille of the LC70 and are secured using the supplied self-tapping plastic screws for enhanced durability and security.

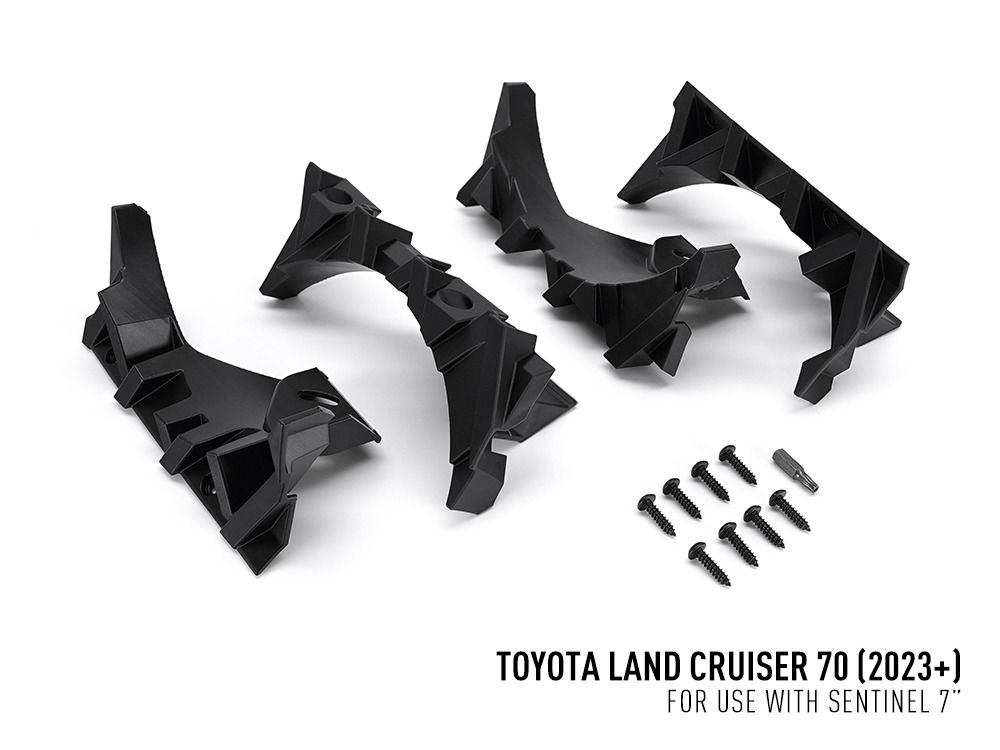

Made from a high-strength composite material with excellent UV stability, the brackets are fully weather- and chemical-resistant, ensuring long-lasting performance in any conditions. To assist with installation, the kit also includes a set of cutting guides, ensuring a precise and professional fit every time.
