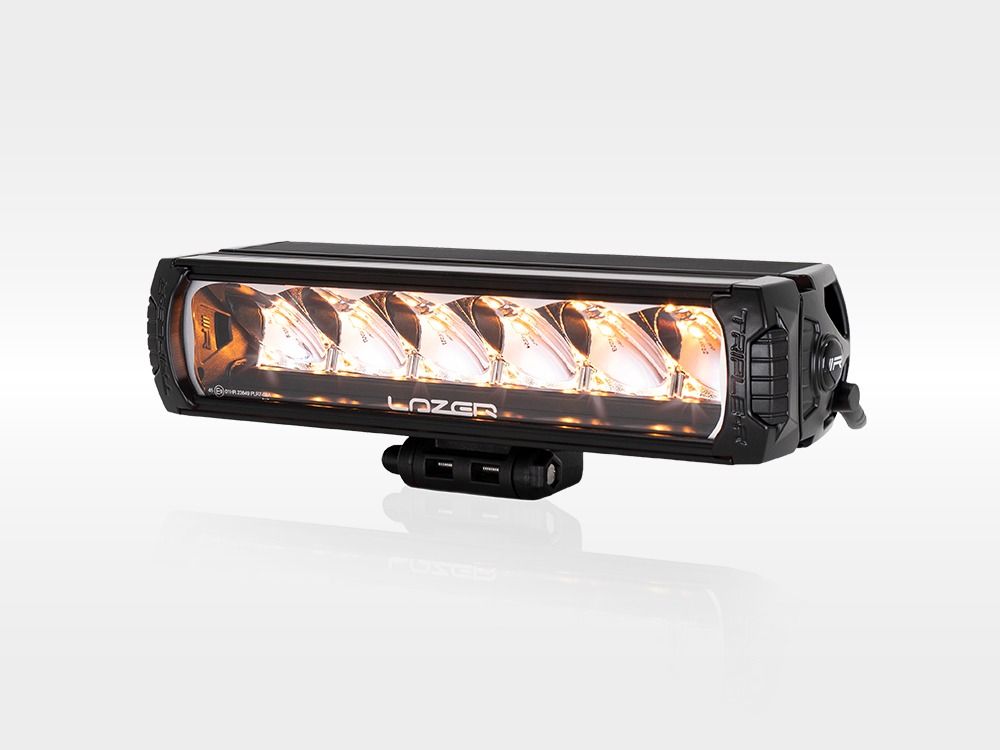

Triple-R 850
Triple-R 850 Triple-R 850 Triple-R 850 Triple-R 850 Triple-R 850 Triple-R 850 Triple-R 850

Triple-R 850

Product Code
#00R6-G2-B-AUS

From A$530.00

To A$614.00

1. Lighting Options *
Triple-R 850

In stock

Find a Stockist

A$530.00

PAYMENT & DELIVERY

Orders will be shipped within 1 working day (stock permitting). Shipping costs will be calculated at the checkout, for more information please click here. For International orders and deliveries, please use or global website - www.lazerlamps.com.

The Triple-R 1250 is a high-performance driving light that delivers a spot beam pattern well suited to both road and off-road applications. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. With the possibility to connect a white or amber position light function, the styling and safety benefits of the 2nd generation Triple-R 1250 are enhanced even further.

Boasting 13,860 lumen, delivering 1 lux to 750m (Boost mode), the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle (e.g. heavy trucks). Highly-reflective, vacuum-metallised optics, designed and engineered in-house, in the UK, using advanced CAD design software, mean more light is directed to where you need it, across a perfectly homogenous beam pattern without flat spots. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time.

The Triple-R 1250 comes with the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1250 act as a high beam driving light only. The position light function (white only) is approved to ECE regulation 7, to operate in parallel with your standard vehicle lights.

Through the adoption of dual-output ‘E-Boost’ technology, the lamp achieves approval to ECE Regulation 112, allowing the lamp to be connected directly to your vehicle’s standard high beam driving lights (where UNECE regulations are recognised). Operating at 100% the light output is beyond the permissible limit of the regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

The exceptional design of the Triple-R range is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty. A fully aluminium enclosure, advanced silicon Gore-Tex breather membrane, and polycarbonate lens (with lifetime guarantee), are just some features which ensure the lamp is best suited to even the toughest environments.

Highly efficient 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Integrated white and amber position light function (UNECE Reg148 approved – white only)

Gradual brightening and smooth colour transitions available via dynamic start-up/welcome mode.

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Dual-output technology via flash-to-dim)

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP68 watertight

5-year warranty

Supplied with pre-wired male/female 3-pin Superseal connectors

Designed & manufactured in UK

TRIPLE-R 850 BOOST MODE LOW OUTPUT / E-MARK MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight1.34 kg
HIGH BEAM FUNCTION
Total Luminous Flux6,930 Lm1,386 Lm
Total Driver 'FOV' Flux 4,179 Lm790 Lm
Colour Temperature5000K5000K
Power Consumption66 Watts13.2 Watts
Current Draw (14.4V)4.6 Amps0.8 Amps
Peak Current Draw6.3 Amps0.94 Amps
Connector3-Pin(+25cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 - Ref: 12.5 (in Low Output Mode only)
Postion Light (white)ECE R148
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRIC DATA BOOST MODE LOW OUTPUT / E-MARK MODE
0.25 lx Line1061 metres474 metres
0.5 lx Line750 metres335 metres
1 lx Line530 metres237 metres
3 lx Line306 metres137 metres
Triple-R 850 photometric diagram
BEAM DISTRIBUTION
Horizontal19 degrees
Vertical18 degrees
Triple-R 850 distribution
Triple-R 850 Beacon Beam Photo
DIMENSIONS
Width322mm
Depth105mm
Height73mm
Triple-R 850 dimensions diagram
  • x1 Triple-R 850 LED Lamp
  • x1 Centre Mount (1114K)
  • x1 Installation Instructions
