Isuzu D-Max (2025+) Grille Kit

Product Code
#DMAX-04

From AU$745.00

To AU$1,175.00

Isuzu D-Max (2025+) Grille Kit

In stock

AU$745.00

Find a
Stockist

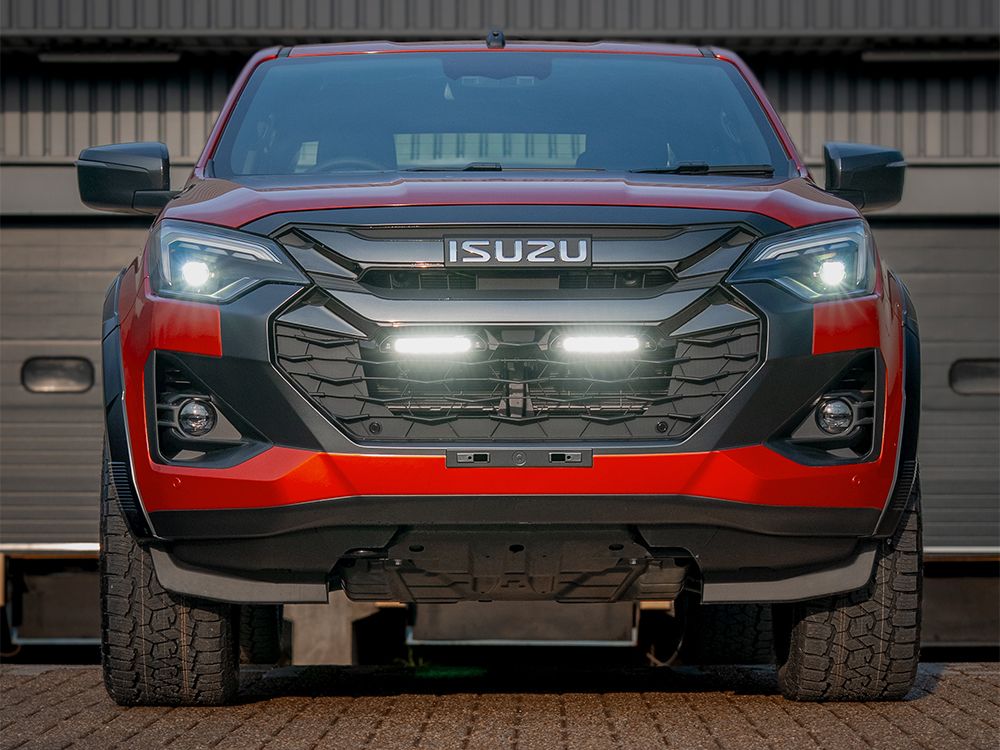

Upgrade the look and performance of your Isuzu D-Max (2025+) with our custom-fit Grille Integration Kit—designed to deliver a sleek, OE-style finish while packing in powerful, road-legal lighting performance.

Each kit includes a pair of Linear-6 High Performance LED driving lights, available in three variants to suit different driving needs. Standard is the everyday hero, with six precision LEDs that cast a bright, even beam to keep country lanes crystal clear while staying 100 % road-legal; Elite turns night into day by doubling the LEDs for a wider, longer reach that inspires confidence on remote roads and trails; and Elite+ is the all-round champion, letting you flick between Boost for maximum punch, Combo for white-plus-amber clarity, Snow/Fog for bad-weather vision, or a ECE approved/low-glare road mode —four lighting options in one, ready for whatever the sky throws at you.

The lights are mounted using four precision-engineered brackets that fit seamlessly into the vehicle’s standard grille. Made from UV-stable, high-strength composite material, the brackets are fully weather and chemical resistant. The kit also includes cutting guides, a two-lamp wiring loom, and anti-theft fasteners for an easy, secure and long-lasting installation.

Please note: The Isuzu D-Max (2025+) Grille Integration Kit is carefully engineered and optimised for use with Linear-6 High Performance LED driving lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

PAYMENT & DELIVERY INFORMATION

Please note all transactions are completed in AUD:

Paypal / Visa / Mastercard / Secure payment / 30 day money-back guarantee

DELIVERY – AUS/NZ CUSTOMERS

Van icon

Goods will be shipped via courier within 1 working day of your order being placed (stock permitting). Shipping costs will be calculated at the checkout. For more information visit our Delivery Information page.

DELIVERY – INTERNATIONAL

Global delivery symbol

For International orders and deliveries, please use or global website - www.lazerlamps.com

Isuzu D-Max (2025+) Grille Kit

Vehicle-specific brackets for seamless, OE-style grille integration

Tailored fit for Isuzu D-Max (2025+)

Designed for use with Linear-6 LED Lights – Standard, Elite, and Elite+ variants

Includes precision-engineered brackets and a two-lamp wiring kit

Supplied with cutting guides and anti-theft fasteners for a secure and straight-forward install

Brackets manufactured from high-strength, UV-stable composite material

Fully road-legal and ECE approved

Backed by a comprehensive 5-year warranty

Technical Specifications


2x LINEAR-6

2x LINEAR-6
ELITE

2x LINEAR-6
ELITE+
(Boost / Low
Output Mode)


Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hours 50,000 hours 50,000 hours
Weight 0.99 kg 0.99 kg 0.99 kg

HIGH BEAM FUNCTION
Total Luminous Flux 4500 Lm 8100 Lm 10200 /
5000 Lm
Total Driver 'FOV' Flux † 3204 Lm 5767 Lm 7290 /
3644 Lm
Colour Temperature 5000K 5000K 5000K
Power Consumption 42 W 84 W 96 / 48 W
Current Draw (14.4V) 2.92 A 5.8 A 7.2 / 3.6 A
Connector 2-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)
3-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68 IP68
EMC Certification ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 56° / 13° 64° / 15° 84° / 20°
0.25 lx Line 698m 796m 849 / 600m
0.5 lx Line 494m 563m 600 / 424m
1 lx Line 349m 398m 424 / 300m
3 lx Line 202m 230m 245 / 173m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • 1x Grille Mounting Kit (Includes cutting guides)
  • 2x Linear-6 LED Lamps
  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
Videos

Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel — click here to explore!
