Sentinel 9'' (Non-PL)
Sentinel 9'' (Non-PL) Sentinel 9'' (Non-PL) Sentinel 9'' (Non-PL) Sentinel 9'' (Non-PL)

Sentinel 9'' (Non-PL)

Product Code
#0S9-STD-WM

From A$495.00

To A$580.00

1. Lighting Options *
Sentinel 9'' (Non-PL)

In stock

Find a Stockist

A$495.00

PAYMENT & DELIVERY

Orders will be shipped within 1 working day (stock permitting). Shipping costs will be calculated at the checkout, for more information please click here. For International orders and deliveries, please use or global website - www.lazerlamps.com.

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. Available in Standard or Elite grades, the former incorporates 20 high power LEDs and comes available with a black finish inside the lamp.

The Sentinel 9'' Standard, produces exceptional lighting performance, Emitting 9,529 raw lumens, the lamps deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of road and off-road use. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

The stealth design of the black variant of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance.

The lamps are supplied with a ‘wide’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion. An alternative ‘slim’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

Combination of 20 premium ‘bin’ LEDs

'Stealth' appearance from black internal bezel, plus black circuit boards

Ultra-reflective vacuum-metallised spot and wide optics

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)

5000K LED colour temperature and 80CRI maximises sharpness and definition

Contemporary lamp design

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

A2 stainless steel fasteners with automotive grade black coating

Supplied with Lazer branded black lens cover

UNECE approved Reg 10

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed & manufactured in UK

SENTINEL 9'' BOOST MODE LOW OUTPUT MODE
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight2.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux9,520 Lm1,904 Lm
Total Driver 'FOV' Flux 5,588 Lm1,118 Lm
Colour Temperature5000K5000K
Power Consumption87 Watts17 Watts
Current Draw (14.4V)6 Amps1.2 Amps
Peak Current Draw7.7 Amps1.6 Amps
Connector3-Pin Superseal (+25cm Cable)
CERTIFICATION
IP Rating #IP68
High Beam (E9 approval - EU Standards)ECE R112 - Ref: 20 (in Low Output Mode only)
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

- Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's field-of-view, defined as an area +/- 45° left/right, and +/- 10° up/down. For more information click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


PHOTOMETRIC DATA BOOST MODE
(ONE LAMP / TWO LAMPS)
LOW OUTPUT MODE
(ONE LAMP)
0.25 lx Line1414 metres / 2000 metres632 metres
0.5 lx Line1000 metres / 1414 metres447 metres
1 lx Line707 metres / 1000 metres316 metres
3 lx Line408 metres / 577 metres189 metres

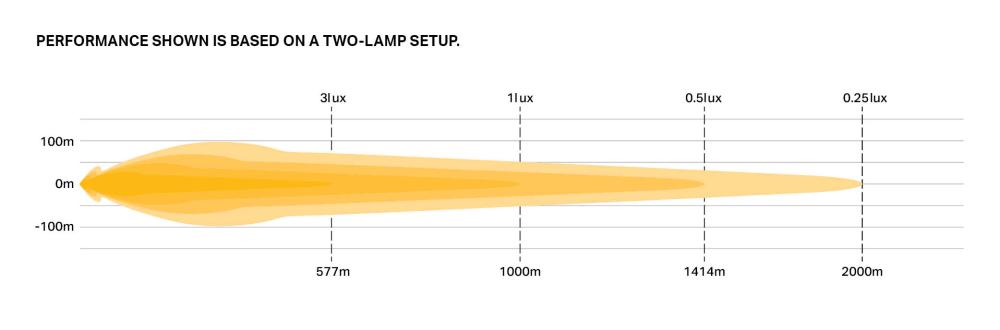

Sentinel 9'' photometric diagram
BEAM DISTRIBUTION
Horizontal52 degrees
Vertical11 degrees
Sentinel 9'' beam distribution
Sentinel 9'' Beam Photo
DIMENSIONS
Width225mm
Depth90mm
Height230mm
Sentinel 9'' dimensions diagram
  • x1 Sentinel 9'' LED Lamp
  • x1 'Wide' Mount Kit (1140K)
  • x1 Lens Cover
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)


Discover more lighting POV footage, step-by-step installations, and other helpful tips on our YouTube channel.

@LAZERLAMPS
